A-5-3. When the system shown in Figure 5-52(a) is subjected to a unit-step input, the system output responds as shown in
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A-5-3. When the system shown in Figure 5-52(a) is subjected to a unit-step input, the system output responds as shown in

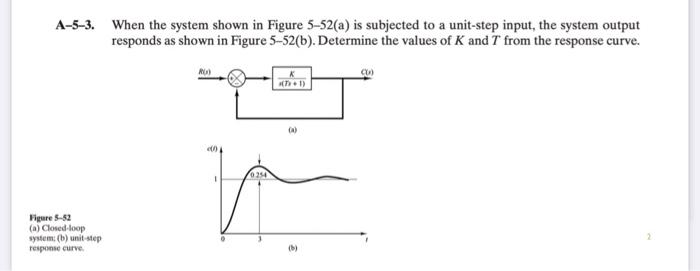

A-5-3. When the system shown in Figure 5-52(a) is subjected to a unit-step input, the system output responds as shown in Figure 5-52(b). Determine the values of K and T from the response curve. RO) CU) (7) + 1) (A) Figure 5-52 (a) Closed-loop system; (b) unit-step response curve. e() 1 0254 (b)
