Question 2 (Energy) Water flows from a lower tank through a 5-cm-diameter pipeline to a pump unit and exits 1 m above a

[answerhappygod]

Question 2 Energy Water Flows From A Lower Tank Through A 5 Cm Diameter Pipeline To A Pump Unit And Exits 1 M Above A 1 (72.31 KiB) Viewed 29 times

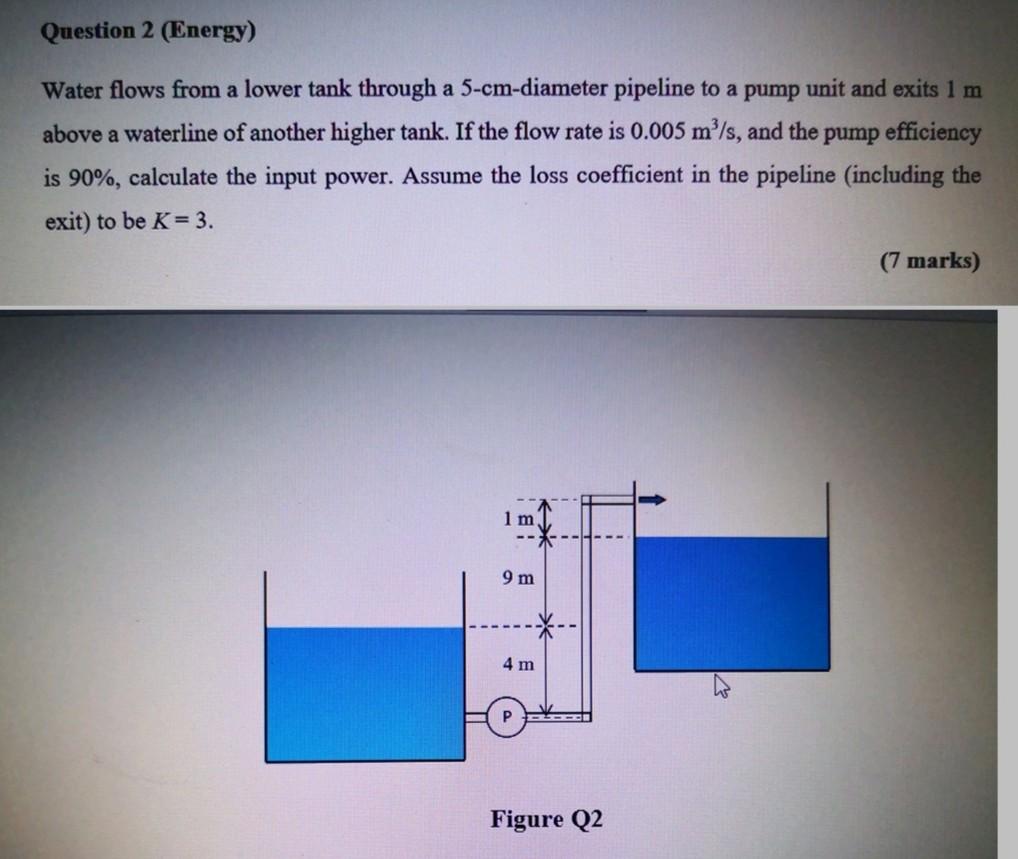

Question 2 (Energy) Water flows from a lower tank through a 5-cm-diameter pipeline to a pump unit and exits 1 m above a waterline of another higher tank. If the flow rate is 0.005 m³/s, and the pump efficiency is 90%, calculate the input power. Assume the loss coefficient in the pipeline (including the exit) to be K = 3. (7 marks) 1 m. 9m 4 m Figure Q2
