The vertical force Fy acts on the 90 degree bent rod cantilever as shown. Determine the torque (moment about the x-axis)

Post by answerhappygod »

The Vertical Force Fy Acts On The 90 Degree Bent Rod Cantilever As Shown Determine The Torque Moment About The X Axis 1
The Vertical Force Fy Acts On The 90 Degree Bent Rod Cantilever As Shown Determine The Torque Moment About The X Axis 1 (31.07 KiB) Viewed 33 times

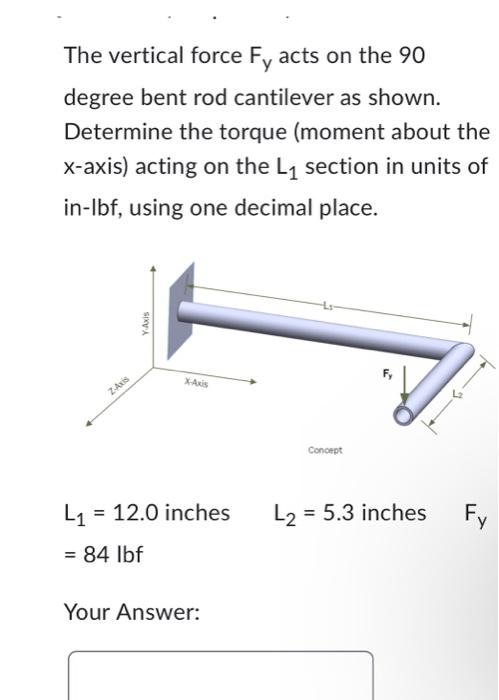

The vertical force Fy acts on the 90 degree bent rod cantilever as shown. Determine the torque (moment about the x-axis) acting on the L₁ section in units of in-lbf, using one decimal place. Concept L2 = 5.3 inches Y-Axis Z-Axis X-Axis L₁ = 12.0 inches = 84 lbf Your Answer: Fy
