The cantilever beam in Figure Q3a carries a point load, P. The beam crosssection is shown in Figure Q3b. The second mome

[answerhappygod]

The Cantilever Beam In Figure Q3a Carries A Point Load P The Beam Crosssection Is Shown In Figure Q3b The Second Mome 1 (51.28 KiB) Viewed 27 times

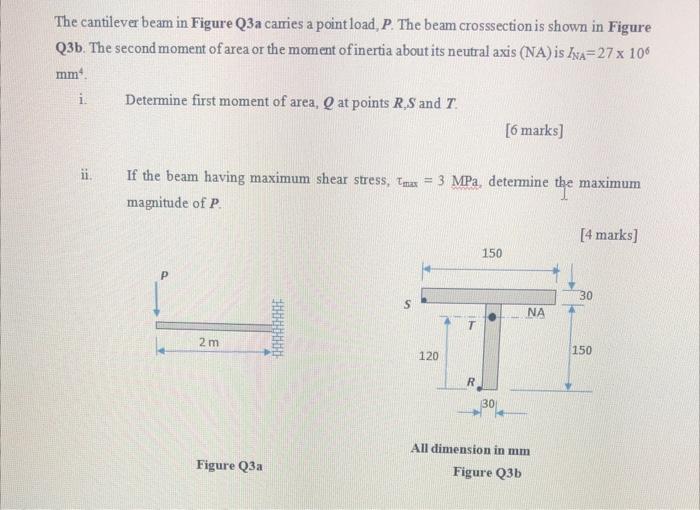

The cantilever beam in Figure Q3a carries a point load, P. The beam crosssection is shown in Figure Q3b. The second moment of area or the moment of inertia about its neutral axis (NA) is INA 27 x 106 mmª. i. Determine first moment of area, Q at points R,S and T. [6 marks] maximum If the beam having maximum shear stress, Tmax= 3 MPa, determine magnitude of P [4 marks] 150 30 S 2 m 150 Figure Q3a ii. HHHHHHHH THE ΝΑ R 120 30 All dimension in mm Figure Q3b
