- The Assembly Supports A Uniform Distributed Load W Part A 1 25 Kn M As Shown W D E 0 5 M 0 5 M 0 5 M B Im 1 5 M 2 M 1 (23.92 KiB) Viewed 33 times

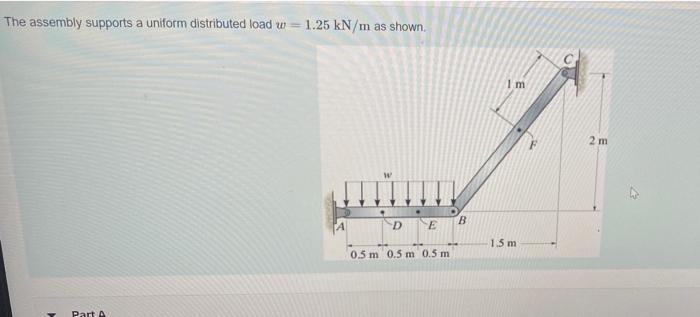

- The Assembly Supports A Uniform Distributed Load W Part A 1 25 Kn M As Shown W D E 0 5 M 0 5 M 0 5 M B Im 1 5 M 2 M 2 (28.51 KiB) Viewed 33 times
- The Assembly Supports A Uniform Distributed Load W Part A 1 25 Kn M As Shown W D E 0 5 M 0 5 M 0 5 M B Im 1 5 M 2 M 3 (16.04 KiB) Viewed 33 times

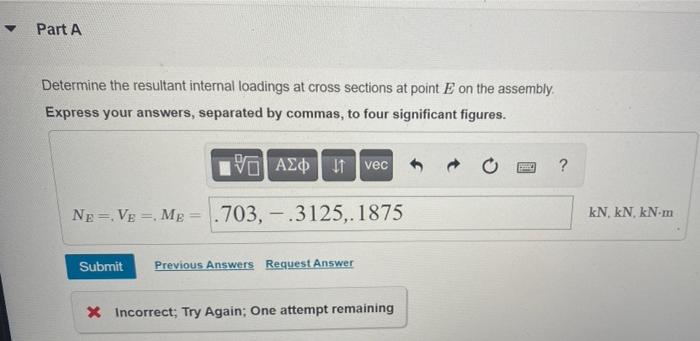

▾ Part A Determine the resultant internal loadings at cross sections at point E on the assembly. Express your answers, separated by commas, to four significant figures. Ψ—| ΑΣΦ | I vec ? NE . VE . ME = .703, - .3125,. 1875 Submit Previous Answers Request Answer X Incorrect; Try Again; One attempt remaining kN, kN, kN-m

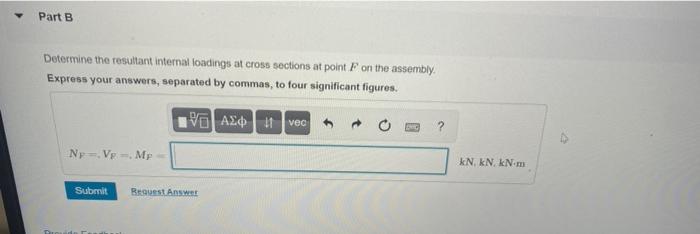

Part B Determine the resultant internal loadings at cross sections at point F on the assembly. Express your answers, separated by commas, to four significant figures. 195| ΑΣΦ | 11 Ivec Ny . Vp, Mp Submit Request Answer kN, kN. kN-m
