The two forces act on the simply supported beam as shown. Determine the maximum moment in the x-z plane in units of N-m,

Post by answerhappygod »

The Two Forces Act On The Simply Supported Beam As Shown Determine The Maximum Moment In The X Z Plane In Units Of N M 1
The Two Forces Act On The Simply Supported Beam As Shown Determine The Maximum Moment In The X Z Plane In Units Of N M 1 (27.72 KiB) Viewed 23 times

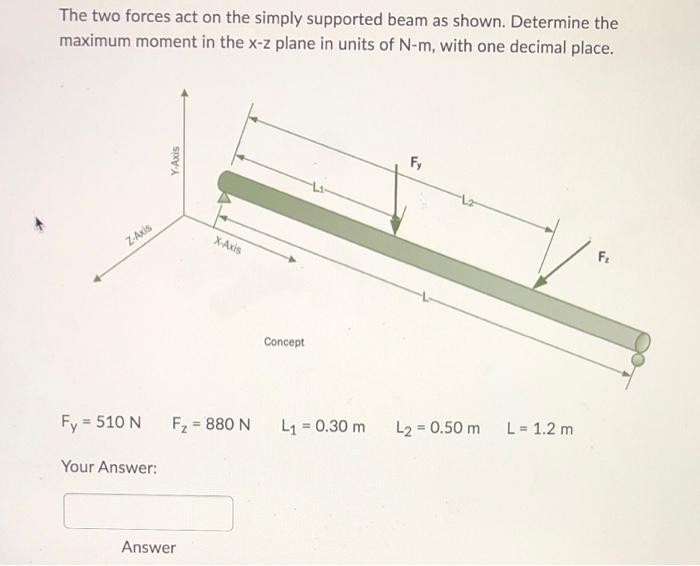

The two forces act on the simply supported beam as shown. Determine the maximum moment in the x-z plane in units of N-m, with one decimal place. Fy F₂ Z-Axis Y-Axis X-Axis Fy = 510 N F₂ = 880 N Your Answer: Answer Concept L₁ = 0.30 m L2=0.50 m L = 1.2 m
