Q1: The weldment shown in the figure is subjected to an alternating force F. The hot-rolled steel bar has a thickness h

Post by answerhappygod »

Q1 The Weldment Shown In The Figure Is Subjected To An Alternating Force F The Hot Rolled Steel Bar Has A Thickness H 1
Q1 The Weldment Shown In The Figure Is Subjected To An Alternating Force F The Hot Rolled Steel Bar Has A Thickness H 1 (130.97 KiB) Viewed 27 times

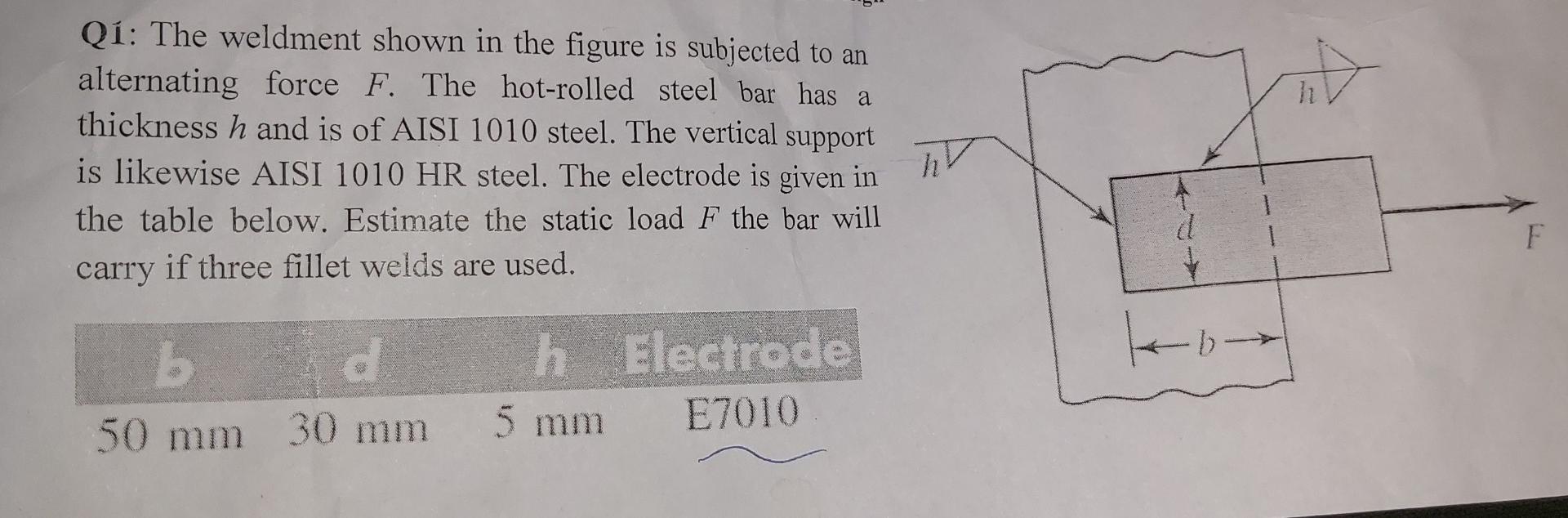

Q1: The weldment shown in the figure is subjected to an alternating force F. The hot-rolled steel bar has a thickness h and is of AISI 1010 steel. The vertical support is likewise AISI 1010 HR steel. The electrode is given in the table below. Estimate the static load F the bar will carry if three fillet welds are used. h h Electrode 50 mm 30 mm E7010 5 mm kb→ F
