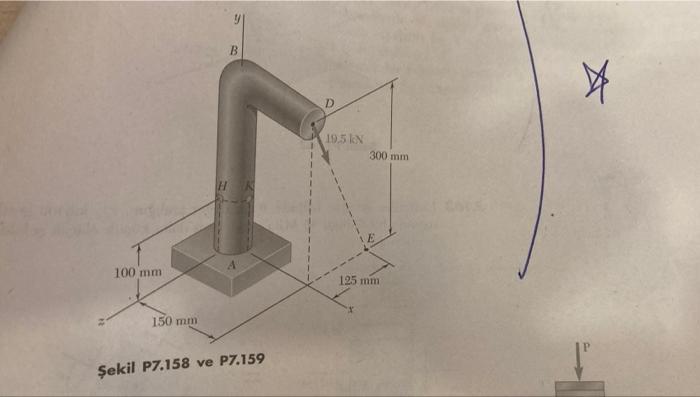

100 mm B HK 150 mm Şekil P7.158 ve P7.159 D 19,5 kN 300 mm 125 mm 4

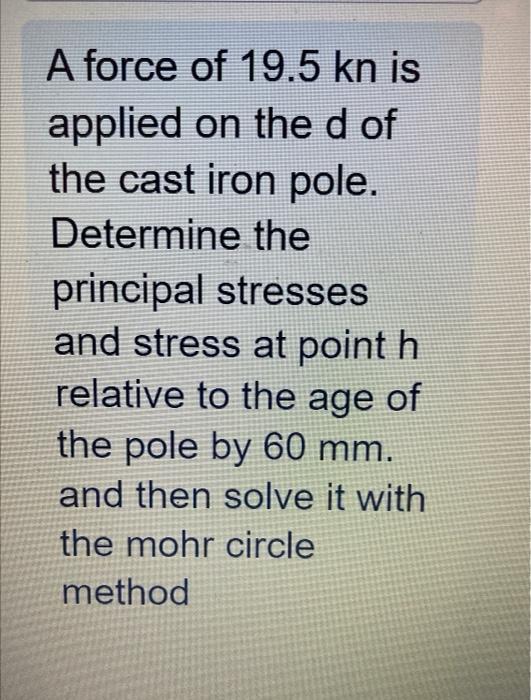

A force of 19.5 kn is applied on the d of the cast iron pole. Determine the principal stresses and stress at point h relative to the age of the pole by 60 mm. and then solve it with the mohr circle method
