Question 3: For the following mechanism the slider (S) moves on the horizontal surface and is guided by the pin inside t

[answerhappygod]

Question 3 For The Following Mechanism The Slider S Moves On The Horizontal Surface And Is Guided By The Pin Inside T 1 (44.83 KiB) Viewed 37 times

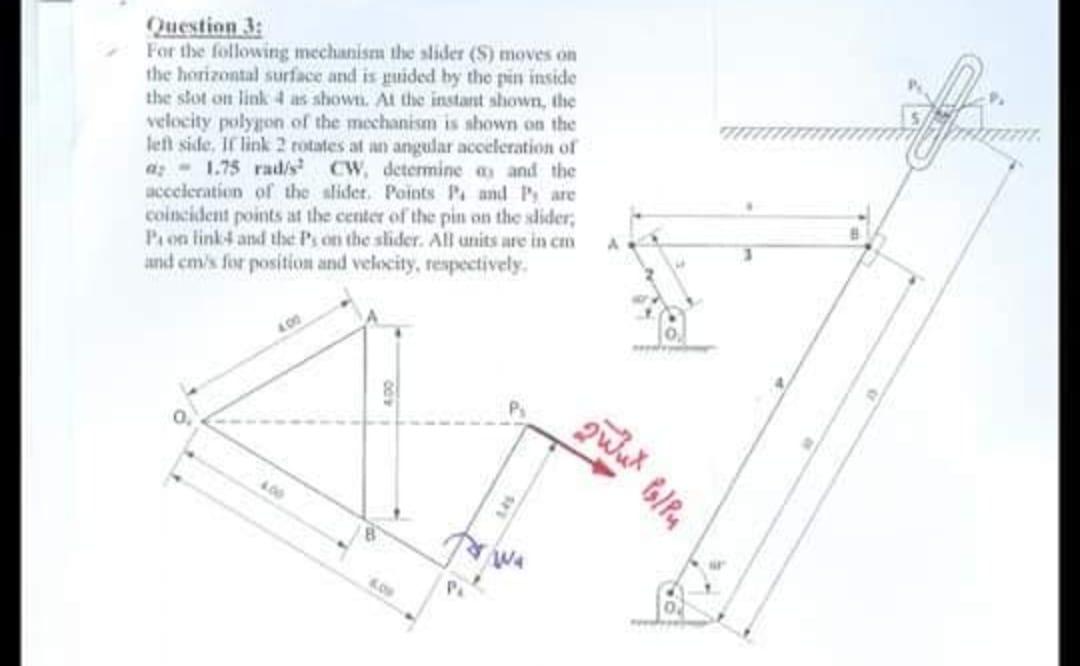

Question 3: For the following mechanism the slider (S) moves on the horizontal surface and is guided by the pin inside the slot on link 4 as shown. At the instant shown, the velocity polygon of the mechanism is shown on the left side, If link 2 rotates at an angular acceleration of az 1.75 rad/s² CW, determine a and the acceleration of the slider. Points P. and Ps are coincident points at the center of the pin on the slider, Pion links and the Ps on the slider. All units are in cm and cm/s for position and velocity, respectively. 4.00 2Wux Ps/Pu
