3. Consider a simple approximate model for the forced air of a one room building shown below, let the room be a single h

[answerhappygod]

3 Consider A Simple Approximate Model For The Forced Air Of A One Room Building Shown Below Let The Room Be A Single H 1 (20.66 KiB) Viewed 35 times

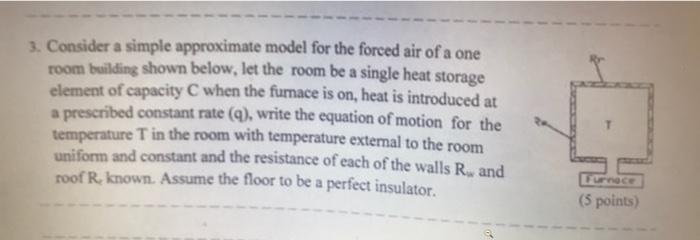

3. Consider a simple approximate model for the forced air of a one room building shown below, let the room be a single heat storage element of capacity C when the furnace is on, heat is introduced at a prescribed constant rate (q), write the equation of motion for the temperature T in the room with temperature external to the room uniform and constant and the resistance of each of the walls R., and roof R, known. Assume the floor to be a perfect insulator. 0 Furnace (5 points)
