A steady air flows into a device via section 1 and leaving the device via secon 2 and section 3 as shown in Figure Q1. S

Post by answerhappygod »

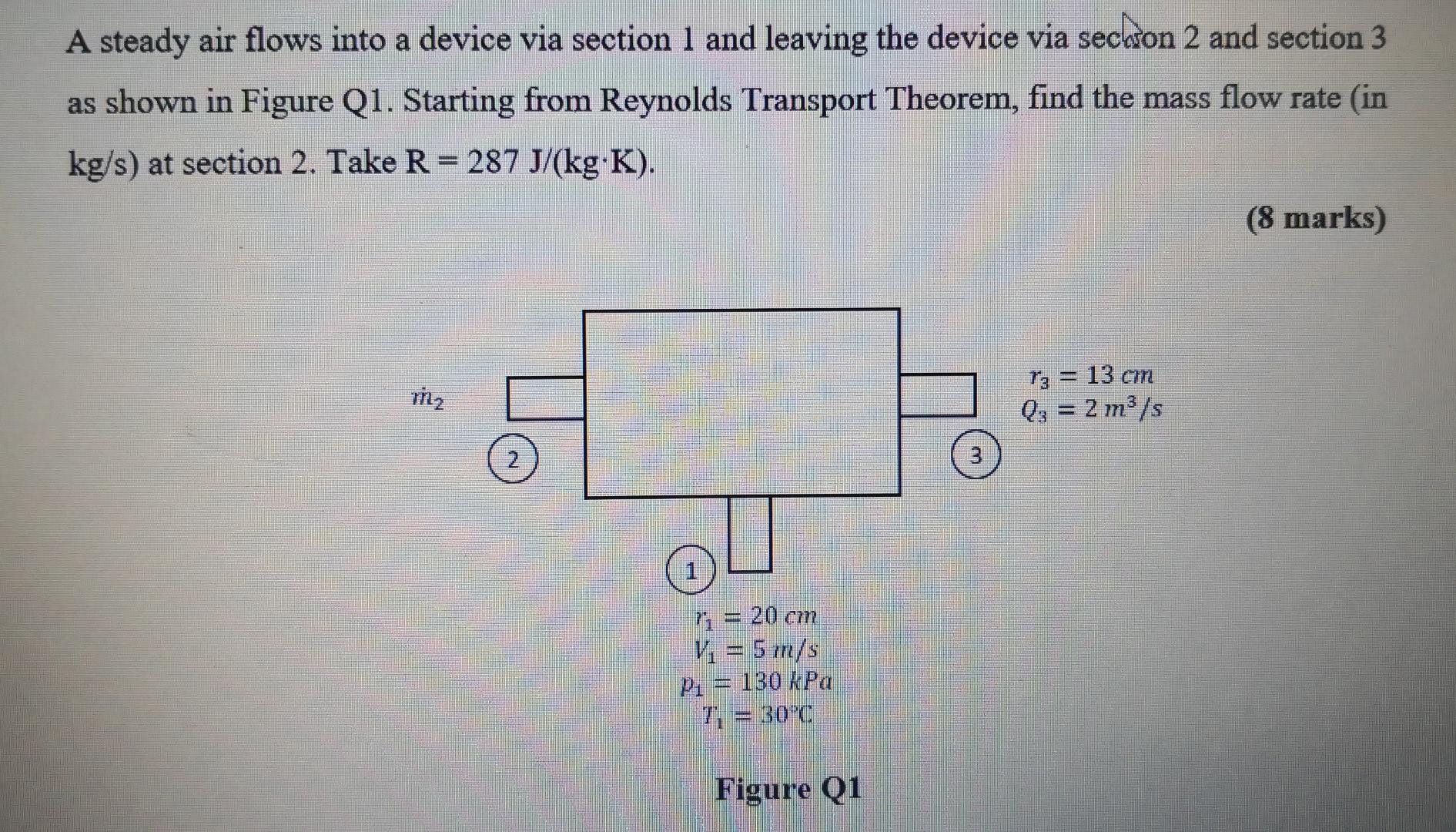

A Steady Air Flows Into A Device Via Section 1 And Leaving The Device Via Secon 2 And Section 3 As Shown In Figure Q1 S 1
A Steady Air Flows Into A Device Via Section 1 And Leaving The Device Via Secon 2 And Section 3 As Shown In Figure Q1 S 1 (445.82 KiB) Viewed 25 times
A steady air flows into a device via section 1 and leaving the device via secon 2 and section 3 as shown in Figure Q1. Starting from Reynolds Transport Theorem, find the mass flow rate (in kg/s) at section 2. Take R = 287 J/(kg K). (8 marks) T3 = 13 cm Q3 = 2 m³/s m₂ 2 O m 7₁ 20 cm V₁ = 5 m/s P₁ = 130 kPa 7₁ = 30°C Figure Q1 3
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
