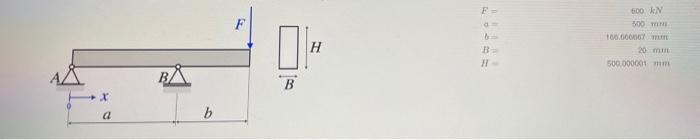

the supporting structure shown below is given with the adjacent values:
part 1
a) determine the location of the maximum bending stress
(in mm)
b) determine the max bending stress
(in N/mm^2)
c) determine the max bending moment
(in Nm)
part 2 Diagramm
a) at what point does the max bending point occur?
(in mm)
b) what is the second order moment area?
(in mm^4)
c) determine the max bending stress
(in N/mm^2)
The Supporting Structure Shown Below Is Given With The Adjacent Values Part 1 A Determine The Location Of The Maximum 1 (7.79 KiB) Viewed 24 times
The Supporting Structure Shown Below Is Given With The Adjacent Values Part 1 A Determine The Location Of The Maximum 2 (33.25 KiB) Viewed 24 times
X a b G B H HULP 73 LEIAS b= B H 600 kN 500 m 160.000067 mm. 20 mm 500.000001 mm
Mb(x) Nm 0 -20000- -40000- -60000- -80000- -100000 100 200 300 400 500 600, X mm
