PROBLEM 2. The shelf shown is supported by two aluminium struts, one on each side. The struts are h = 20 mm wide and the

Post by answerhappygod »

Problem 2 The Shelf Shown Is Supported By Two Aluminium Struts One On Each Side The Struts Are H 20 Mm Wide And The 1
Problem 2 The Shelf Shown Is Supported By Two Aluminium Struts One On Each Side The Struts Are H 20 Mm Wide And The 1 (53.33 KiB) Viewed 66 times

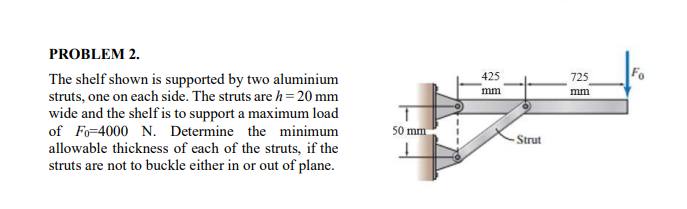

PROBLEM 2. The shelf shown is supported by two aluminium struts, one on each side. The struts are h = 20 mm wide and the shelf is to support a maximum load of Fo-4000 N. Determine the minimum allowable thickness of each of the struts, if the struts are not to buckle either in or out of plane. 50 mm 425 mm -Strut 725 mm Fo
