(4) Determine the horizontal and vertical components of force which the pins at A and B exert on the frame. 2 m Ans. 400

Post by answerhappygod »

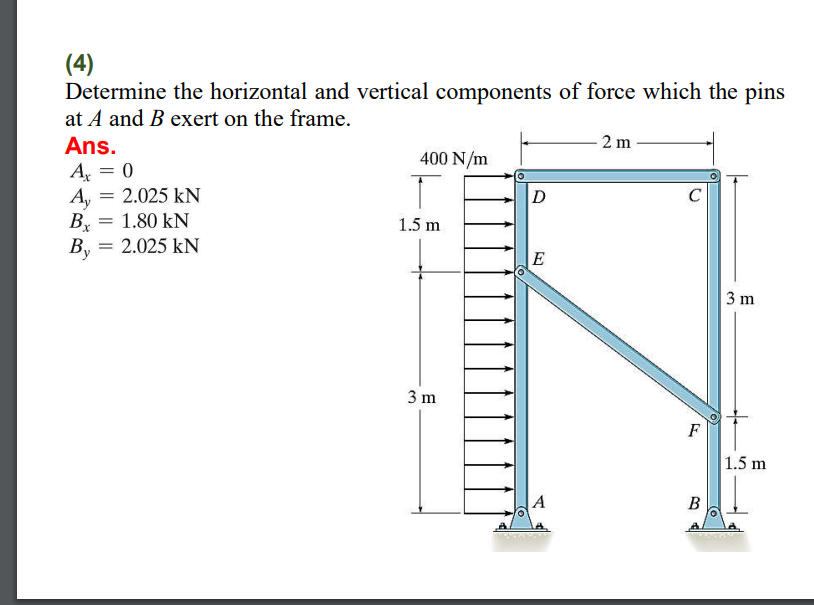

4 Determine The Horizontal And Vertical Components Of Force Which The Pins At A And B Exert On The Frame 2 M Ans 400 1
4 Determine The Horizontal And Vertical Components Of Force Which The Pins At A And B Exert On The Frame 2 M Ans 400 1 (95.83 KiB) Viewed 23 times
(4) Determine the horizontal and vertical components of force which the pins at A and B exert on the frame. 2 m Ans. 400 N/m Ax = 0 T C D Ay = 2.025 KN Bx = 1.80 KN 1.5 m By = 2.025 KN E 3 m F B 3 m 1.5 m
