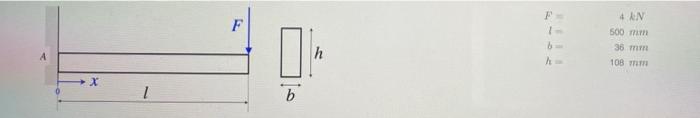

the supporting structure shown below is given with the adjacent values:
Part 1
a) determine the location of the maximum bending stress
(in mm)
b) determine the max bending stress
(in N/mm^2)
c) determine the max bending moment
(in Nm)
Part 2
a) at what point does the max bending moment occur?
(in mm)
b) what is the second order of moment area?
(in mm^4)
c) determine the max bending stress
(in N/mm^2)
The Supporting Structure Shown Below Is Given With The Adjacent Values Part 1 A Determine The Location Of The Maximum 1 (7.04 KiB) Viewed 37 times
The Supporting Structure Shown Below Is Given With The Adjacent Values Part 1 A Determine The Location Of The Maximum 2 (34.65 KiB) Viewed 37 times
X 1 F b h 1 4 AN 500 mm 36 mm 108 mm

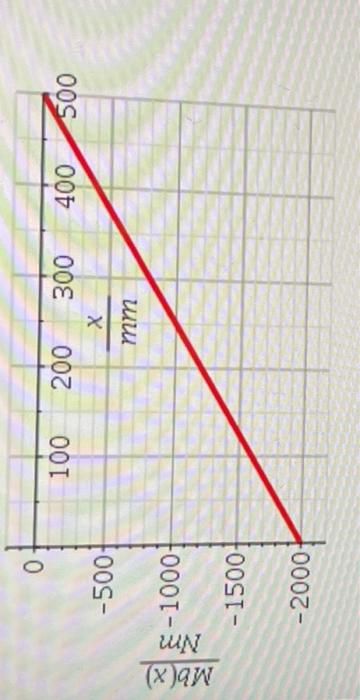

MB(X) Nm 0 -500- -1000- -1500- -2000- 100 200 300 X mm 400 500
