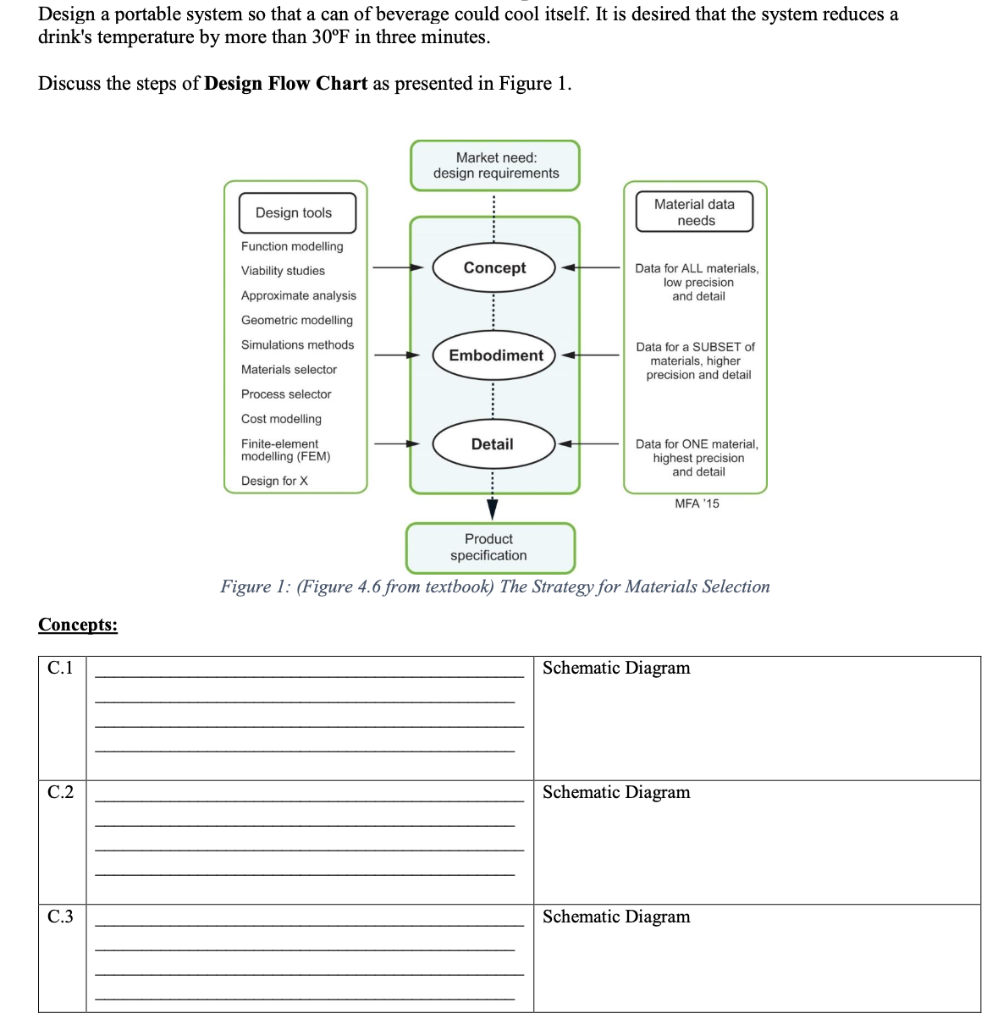

Design a portable system so that a can of beverage could cool itself. It is desired that the system reduces a drink's temperature by more than 30°F in three minutes. Discuss the steps of Design Flow Chart as presented in Figure 1. Market need: design requirements Design tools Material data needs Function modelling Viability studies Concept Data for ALL materials, low precision and detail Approximate analysis Geometric modelling Simulations methods Embodiment Data for a SUBSET of materials, higher precision and detail Materials selector Process selector Cost modelling Detail Finite-element modelling (FEM) Design for X Data for ONE material, highest precision and detail MFA '15 Product specification Figure 1: (Figure 4.6 from textbook) The Strategy for Materials Selection Schematic Diagram Schematic Diagram Schematic Diagram Concepts: C.1 C.2 C.3
Embodiment: Choose the tools needed and proposed materials E.1 Schematic Diagram Tools Materials Schematic Diagram Tools Materials Schematic Diagram Tools Materials Details of one concept embodiment: Choose one of the above and try to go one level down in terms of details D.1 E.2 E.3
