A beam has a rectangular cross section as shown below. The loading condition on the beam is such that it will bend about

Post by answerhappygod »

A Beam Has A Rectangular Cross Section As Shown Below The Loading Condition On The Beam Is Such That It Will Bend About 1
A Beam Has A Rectangular Cross Section As Shown Below The Loading Condition On The Beam Is Such That It Will Bend About 1 (47.8 KiB) Viewed 41 times

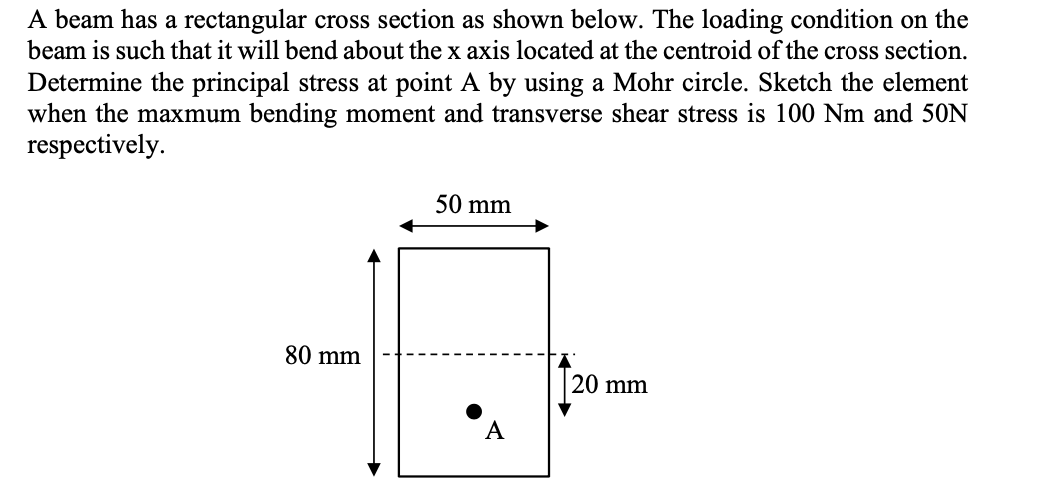

A beam has a rectangular cross section as shown below. The loading condition on the beam is such that it will bend about the x axis located at the centroid of the cross section. Determine the principal stress at point A by using a Mohr circle. Sketch the element when the maxmum bending moment and transverse shear stress is 100 Nm and 50N respectively. 50 mm 80 mm 20 mm A
