QUESTION 8 [12] Inner and outer diameters of an outward flow reaction turbine wheel are 1 m and 2 m respectively. The wa

Post by answerhappygod »

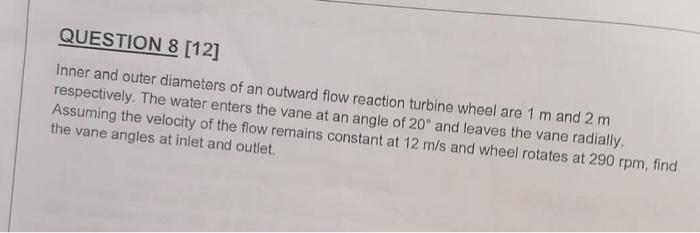

Question 8 12 Inner And Outer Diameters Of An Outward Flow Reaction Turbine Wheel Are 1 M And 2 M Respectively The Wa 1
Question 8 12 Inner And Outer Diameters Of An Outward Flow Reaction Turbine Wheel Are 1 M And 2 M Respectively The Wa 1 (16.7 KiB) Viewed 24 times
QUESTION 8 [12] Inner and outer diameters of an outward flow reaction turbine wheel are 1 m and 2 m respectively. The water enters the vane at an angle of 20° and leaves the vane radially. Assuming the velocity of the flow remains constant at 12 m/s and wheel rotates at 290 rpm, find the vane angles at inlet and outlet.
