FLUID MECHANICS QUESTIONS Water flows from a lower tank through a 5-cm-diameter pipeline to a pump unit and exits 1 m ab

[answerhappygod]

Fluid Mechanics Questions Water Flows From A Lower Tank Through A 5 Cm Diameter Pipeline To A Pump Unit And Exits 1 M Ab 1 (40.56 KiB) Viewed 36 times

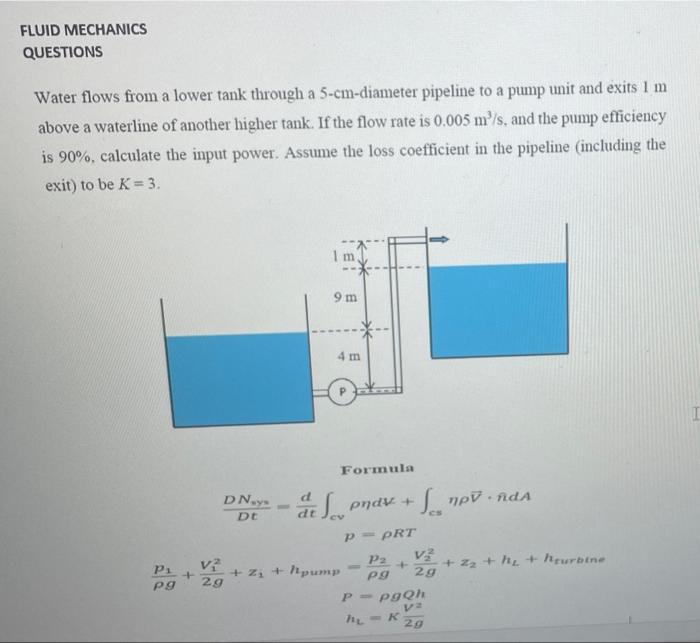

FLUID MECHANICS QUESTIONS Water flows from a lower tank through a 5-cm-diameter pipeline to a pump unit and exits 1 m above a waterline of another higher tank. If the flow rate is 0.005 m³/s, and the pump efficiency. is 90%, calculate the input power. Assume the loss coefficient in the pipeline (including the exit) to be K = 3. 1 m, 9m I npV.fdA P₂ V2 + +2₂+h₂ + hurbine Pg 2g pgQh Va 20 4 m Formula pndv+ P = PRT V² P₁ + P9 2g DN ys Dt + Z₁ + hpump - at Sve P- h₁ = K Sa
