Question 1 (Continuity) A steady air flows into a device via section 1 and leaving the device via section 2 and section

[answerhappygod]

Question 1 Continuity A Steady Air Flows Into A Device Via Section 1 And Leaving The Device Via Section 2 And Section 1 (20.07 KiB) Viewed 35 times

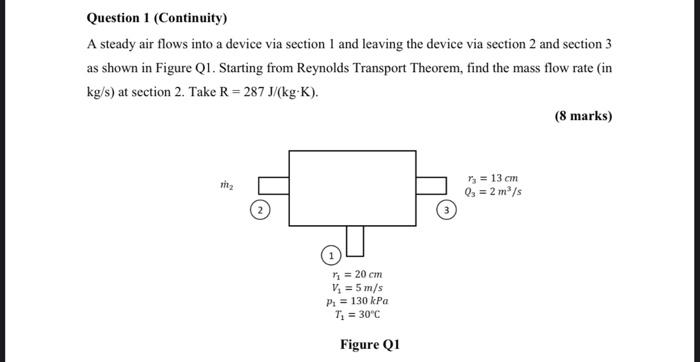

Question 1 (Continuity) A steady air flows into a device via section 1 and leaving the device via section 2 and section 3 as shown in Figure Q1. Starting from Reynolds Transport Theorem, find the mass flow rate (in kg/s) at section 2. Take R = 287 J/(kg-K). (8 marks) 7₂ = 13 cm Q3 = 2 m³/s 11₂ ₁ = 20 cm V₁ = 5 m/s P= 130 kPa T₁ = 30°C Figure Q1
