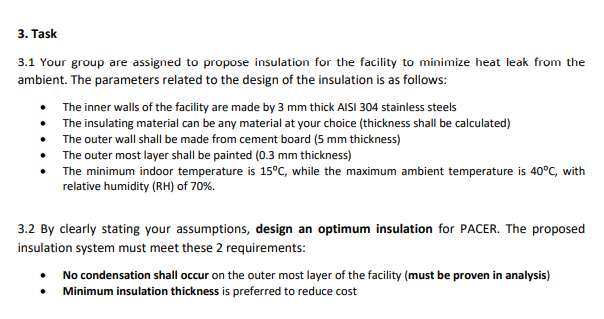

3. Task 3.1 Your group are assigned to propose insulation for the facility to minimize heat leak from the ambient. The parameters related to the design of the insulation is as follows: The inner walls of the facility are made by 3 mm thick AISI 304 stainless steels The insulating material can be any material at your choice (thickness shall be calculated) The outer wall shall be made from cement board (5 mm thickness) The outer most layer shall be painted (0.3 mm thickness) The minimum indoor temperature is 15°C, while the maximum ambient temperature is 40°C, with relative humidity (RH) of 70%. 3.2 By clearly stating your assumptions, design an optimum insulation for PACER. The proposed insulation system must meet these 2 requirements: No condensation shall occur on the outer most layer of the facility (must be proven in analysis) Minimum insulation thickness is preferred to reduce cost ●
