The state of stress at a point in a member is shown on the element. Suppose that o = -40 MPa, oy = -90 MPa, Try = -28 MP

[answerhappygod]

The State Of Stress At A Point In A Member Is Shown On The Element Suppose That O 40 Mpa Oy 90 Mpa Try 28 Mp 1 (228.42 KiB) Viewed 28 times

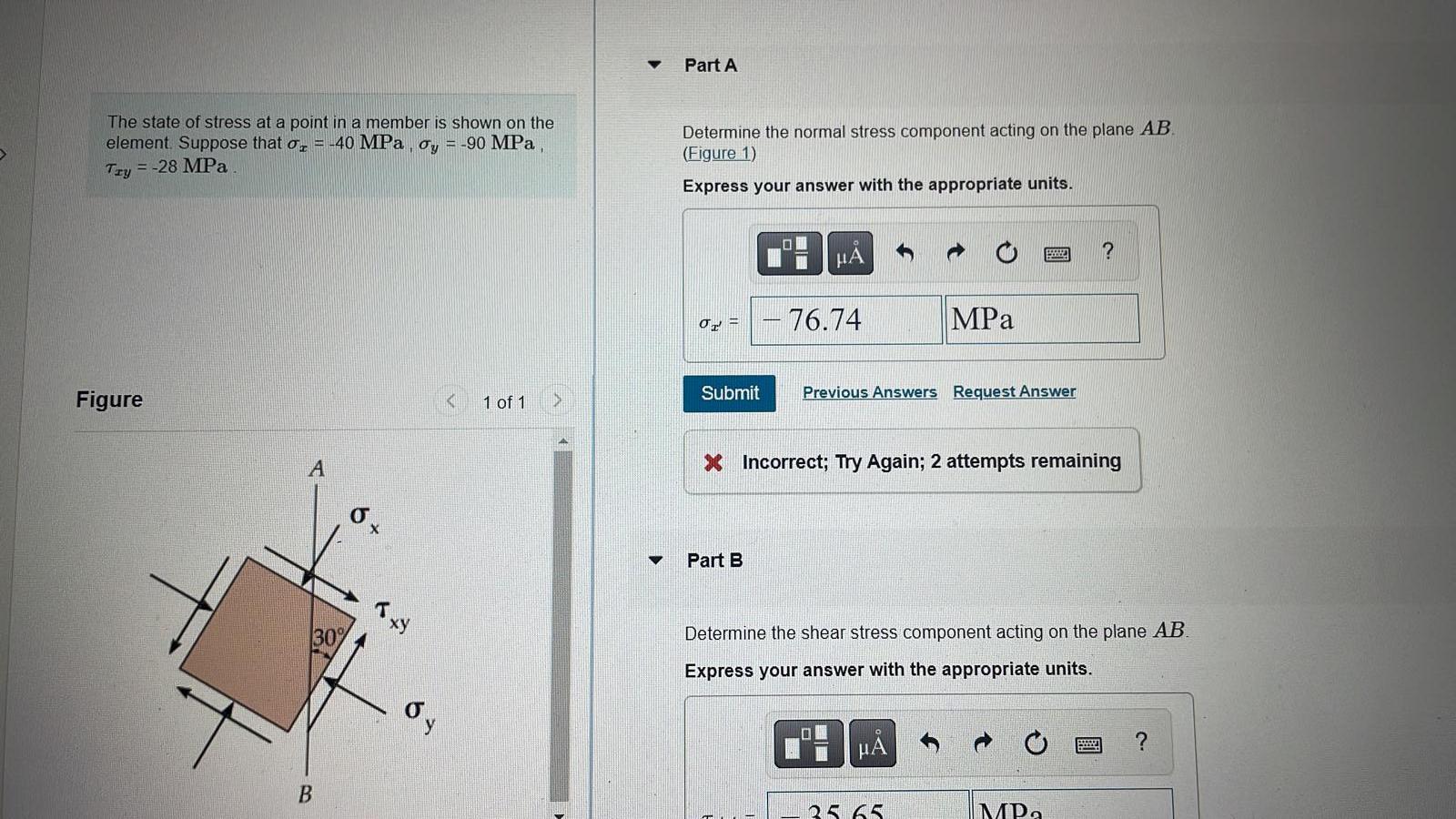

The state of stress at a point in a member is shown on the element. Suppose that o = -40 MPa, oy = -90 MPa, Try = -28 MPa Figure K 1 of 1 A 30% B Txx y Part A Determine the normal stress component acting on the plane AB. (Figure 1) Express your answer with the appropriate units. 0 HA S σT = 76.74 MPa Submit Previous Answers Request Answer X Incorrect; Try Again; 2 attempts remaining ♥ Part B Determine the shear stress component acting on the plane AB Express your answer with the appropriate units. HÅ ? 35.65 MPa ?
