From The Provided Pump Table 1 Calculate The Power Required At The Pump Shaft Given That The Water Density And Flow Ra 1 (97.87 KiB) Viewed 52 times

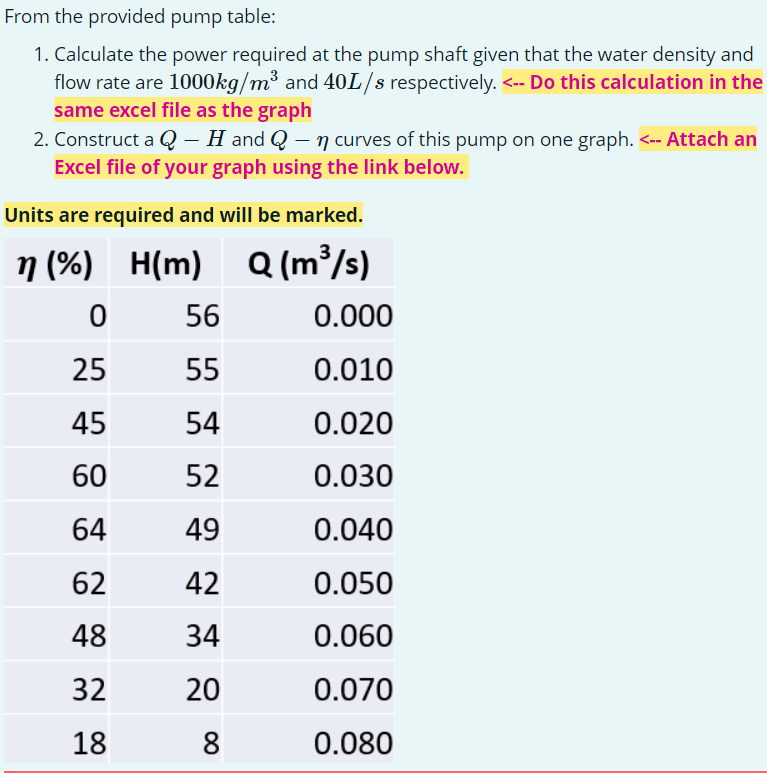

From the provided pump table: 1. Calculate the power required at the pump shaft given that the water density and flow rate are 1000kg/m³ and 40L/s respectively. <-- Do this calculation in the same excel file as the graph 2. Construct a Q - H and Q-n curves of this pump on one graph. <-- Attach an Excel file of your graph using the link below. Units are required and will be marked. n (%) H(m) Q (m³/s) 0 56 0.000 25 55 0.010 45 54 0.020 60 52 0.030 64 49 0.040 62 42 0.050 48 34 0.060 32 20 0.070 18 0.080 8
From the provided pump table: 1. Calculate the power required at the pump shaft given that the water density and flow rate are 1000kg/m³ and 40L/s respectively. <-- Do this calculation in the same excel file as the graph 2. Construct a Q - H and Q-n curves of this pump on one graph. <-- Attach an Excel file of your graph using the link below. Units are required and will be marked. n (%) H(m) Q (m³/s) 0 56 0.000 25 55 0.010 45 54 0.020 60 52 0.030 64 49 0.040 62 42 0.050 48 34 0.060 32 20 0.070 18 0.080 8
