Experimental procedure Install Venturi nozzle in measuring section VI. When installing the measuring object, it must be

Post by answerhappygod »

Experimental Procedure Install Venturi Nozzle In Measuring Section Vi When Installing The Measuring Object It Must Be 1
Experimental Procedure Install Venturi Nozzle In Measuring Section Vi When Installing The Measuring Object It Must Be 1 (35.82 KiB) Viewed 20 times

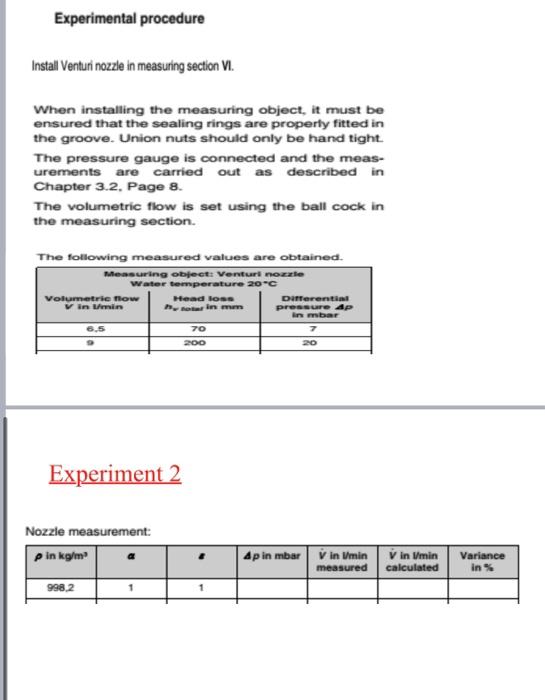

Experimental procedure Install Venturi nozzle in measuring section VI. When installing the measuring object, it must be ensured that the sealing rings are properly fitted in the groove. Union nuts should only be hand tight. The pressure gauge is connected and the meas- urements are carried out as described in Chapter 3.2, Page 8. The volumetric flow is set using the ball cock in the measuring section. The following measured values are obtained. Measuring object: Venturi nozzle Water temperature 20°C Head loss Volumetric flow V in U/min Bytoter in mm Differential pressure Ap in mbar 7 6,5 9 70 200 20 Experiment 2 Nozzle measurement: p in kg/m³ 998,2 4pin mbar V in Umin V in Vmin calculated measured Variance in %
