Experiment 8 Procedures At 3 different velocities, compute flow rate for 3 different deflection angles. Then measure The

[answerhappygod]

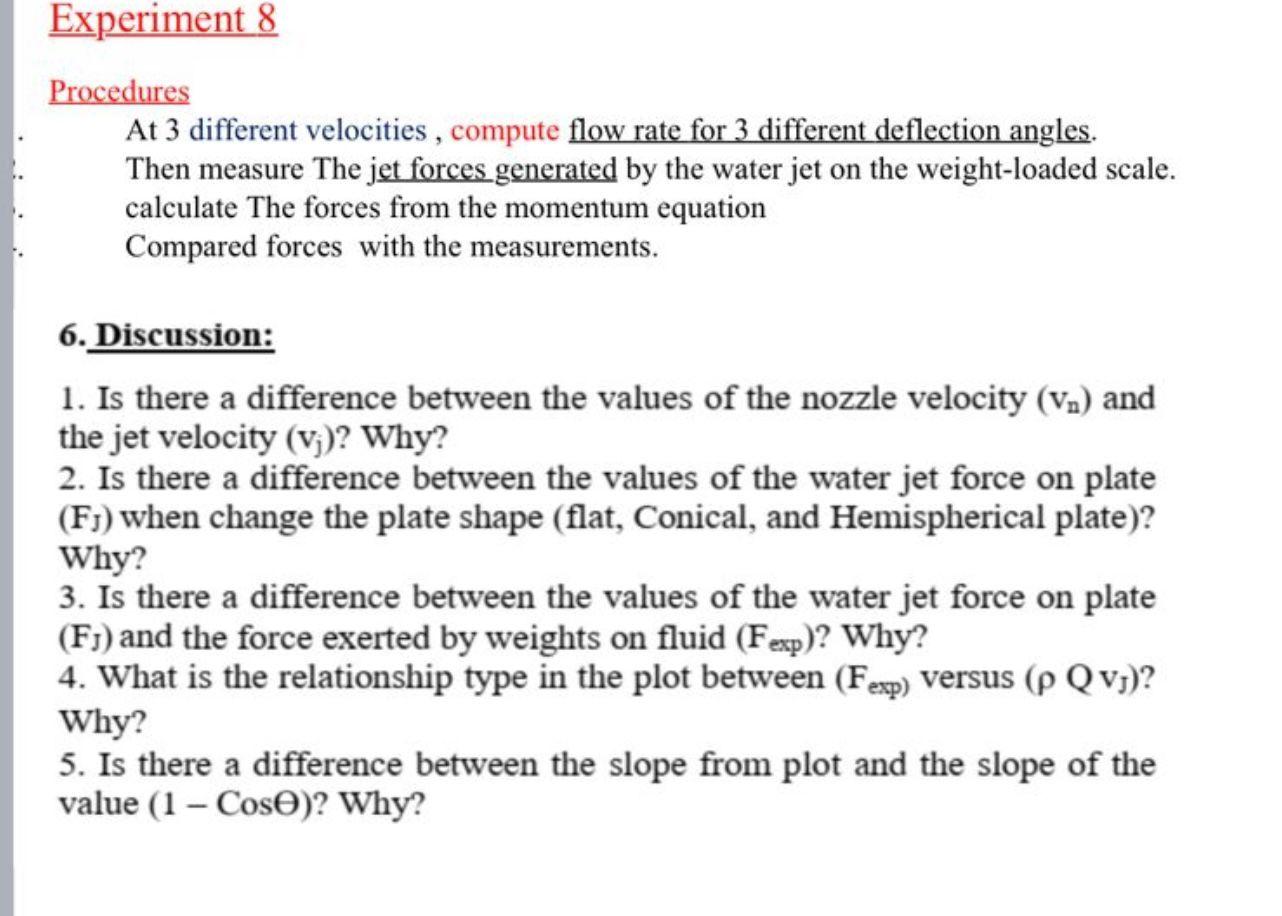

Experiment 8 Procedures At 3 Different Velocities Compute Flow Rate For 3 Different Deflection Angles Then Measure The 1 (115.87 KiB) Viewed 32 times

Experiment 8 Procedures At 3 different velocities, compute flow rate for 3 different deflection angles. Then measure The jet forces generated by the water jet on the weight-loaded scale. calculate the forces from the momentum equation Compared forces with the measurements. 6. Discussion: 1. Is there a difference between the values of the nozzle velocity (V₂) and the jet velocity (vj)? Why? 2. Is there a difference between the values of the water jet force on plate (FJ) when change the plate shape (flat, Conical, and Hemispherical plate)? Why? 3. Is there a difference between the values of the water jet force on plate (FJ) and the force exerted by weights on fluid (Fexp)? Why? 4. What is the relationship type in the plot between (Fexp) versus (p Q vj)? Why? 5. Is there a difference between the slope from plot and the slope of the value (1-Cos)? Why?
