ME252 STRENGTH OF MATERIALS I FINAL EXAM 08.06.2017 1. (30) Determine the horizontal displacement of the Point A using W

Post by answerhappygod »

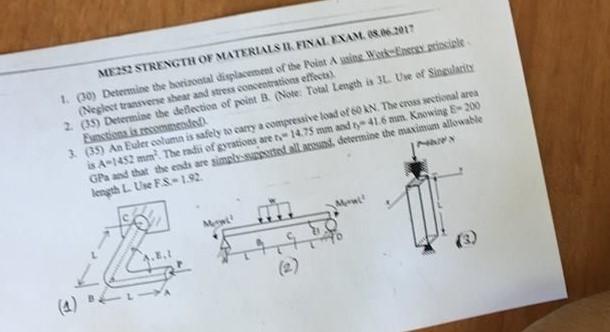

Me252 Strength Of Materials I Final Exam 08 06 2017 1 30 Determine The Horizontal Displacement Of The Point A Using W 1
Me252 Strength Of Materials I Final Exam 08 06 2017 1 30 Determine The Horizontal Displacement Of The Point A Using W 1 (24.16 KiB) Viewed 36 times
ME252 STRENGTH OF MATERIALS I FINAL EXAM 08.06.2017 1. (30) Determine the horizontal displacement of the Point A using Work-Energy principle (Neglect transverse shear and stress concentrations effects) 2. (35) Determine the deflection of point B. (Note: Total Length is 3L. Use of Singularity Eunctions is recommended) 3. (35) An Euler column is safely to carry a compressive load of 60 kN. The cross sectional area is A-1452 mm³. The radii of gyrations are t14.75 mm and ry 41.6 mm. Knowing E-200 GPa and that the ends are simply-supported all acesand determine the maximum allowable length L. Use FS-1.92. MAX Merw S.E.U (2)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
