The state of stress at a point in a member is shown on the element. Suppose that o₂ = -60 MPa, oy = -90 MPa, Try = -25 M

[answerhappygod]

The State Of Stress At A Point In A Member Is Shown On The Element Suppose That O 60 Mpa Oy 90 Mpa Try 25 M 1 (58.52 KiB) Viewed 38 times

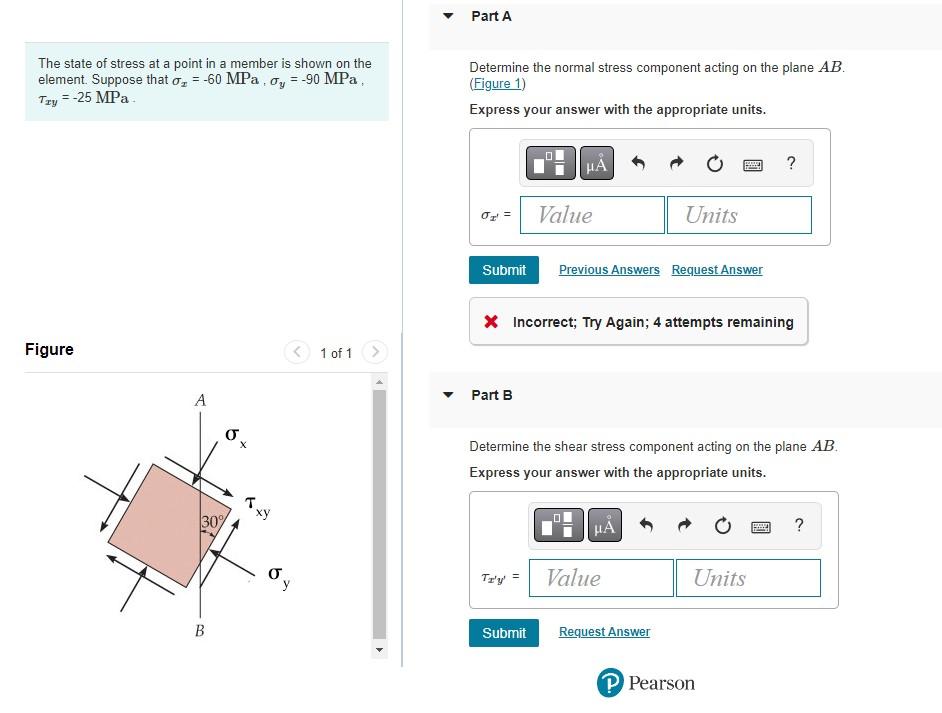

The state of stress at a point in a member is shown on the element. Suppose that o₂ = -60 MPa, oy = -90 MPa, Try = -25 MPa. Figure 1 of 1 A 30% B Part A Determine the normal stress component acting on the plane AB. (Figure 1) Express your answer with the appropriate units. HA per ? 02 = Value Units Submit Previous Answers Request Answer * Incorrect; Try Again; 4 attempts remaining Part B Determine the shear stress component acting on the plane AB. Express your answer with the appropriate units. μà Try= Value Units Submit Request Answer P Pearson
