Question 3-(40 pts) For the electric motor system in figure: motor resistance R - 102; the torque constant Km-IN m/ A an

[answerhappygod]

Question 3 40 Pts For The Electric Motor System In Figure Motor Resistance R 102 The Torque Constant Km In M A An 1 (35.15 KiB) Viewed 36 times

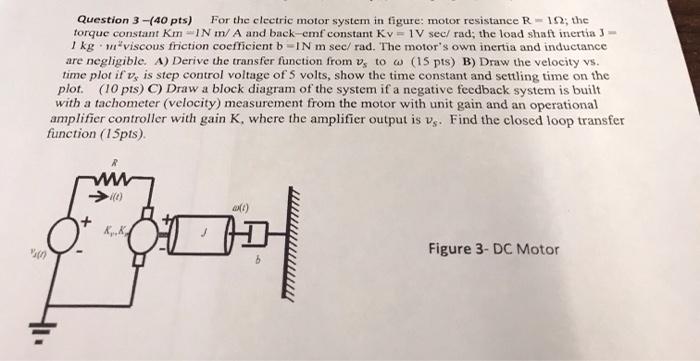

Question 3-(40 pts) For the electric motor system in figure: motor resistance R - 102; the torque constant Km-IN m/ A and back-emf constant Kv=1V sec/ rad; the load shaft inertia J= 1 kg viscous friction coefficient b=IN m sec/ rad. The motor's own inertia and inductance are negligible. A) Derive the transfer function from v, to w (15 pts) B) Draw the velocity vs. time plot if v, is step control voltage of 5 volts, show the time constant and settling time on the plot. (10 pts) C) Draw a block diagram of the system if a negative feedback system is built with a tachometer (velocity) measurement from the motor with unit gain and an operational amplifier controller with gain K, where the amplifier output is vs. Find the closed loop transfer function (15pts). K.K Good 머 Figure 3-DC Motor
