Find the diameter on each three rivet for the connection shown in the figure. For a F = 12 kN, yield stress is 16 MPa. H

Post by answerhappygod »

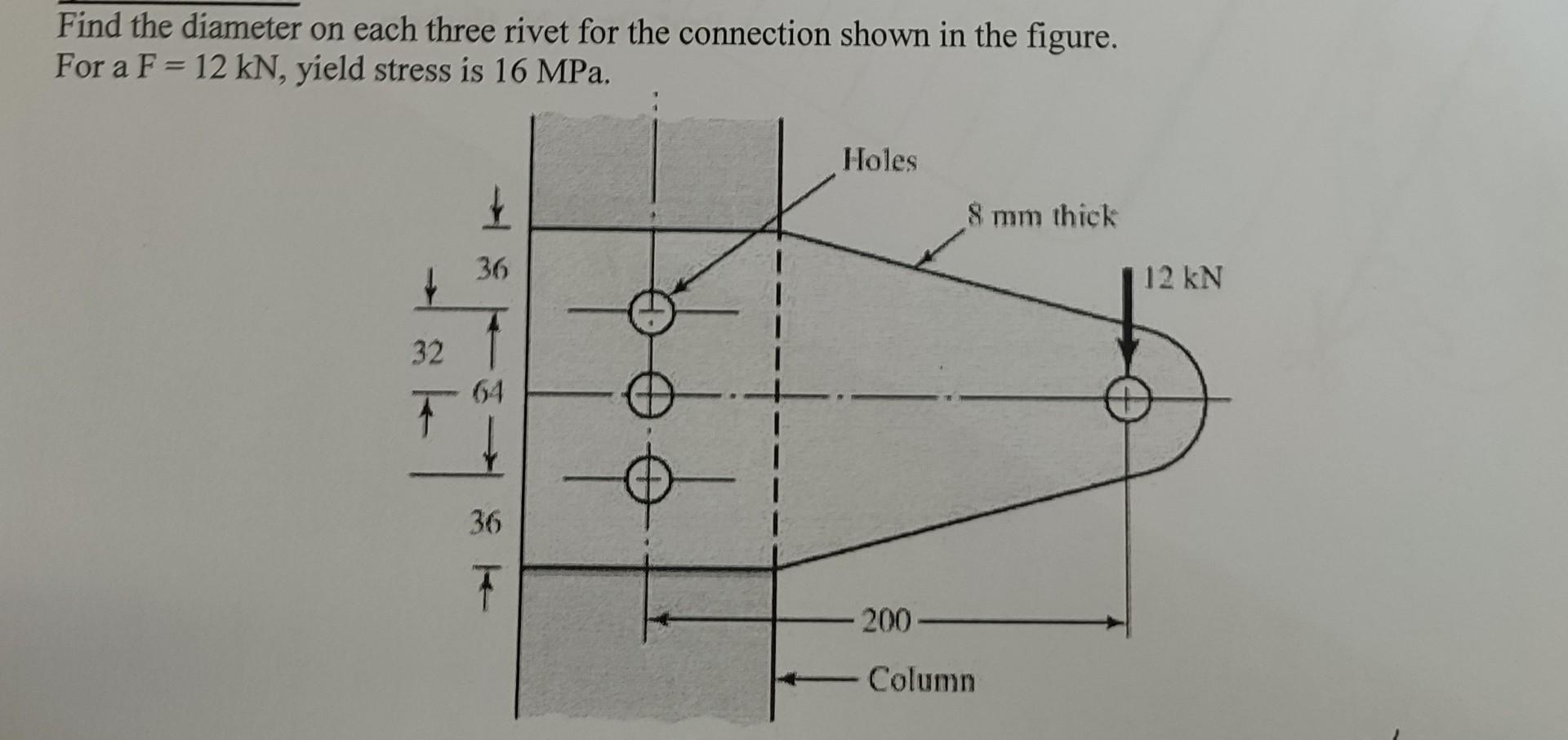

Find The Diameter On Each Three Rivet For The Connection Shown In The Figure For A F 12 Kn Yield Stress Is 16 Mpa H 1
Find The Diameter On Each Three Rivet For The Connection Shown In The Figure For A F 12 Kn Yield Stress Is 16 Mpa H 1 (99.81 KiB) Viewed 42 times
Find the diameter on each three rivet for the connection shown in the figure. For a F = 12 kN, yield stress is 16 MPa. Holes 8 mm thick 36 32 1 64 36 T 200- Column 12 kN
