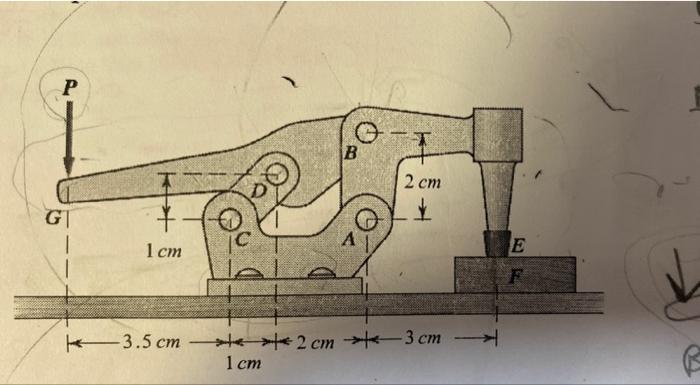

7. A toggle clamp holds sample F (Figure 1). Determine the loads acting on the clamp at A in terms of the input force P applied to the handle of the toggle clamp.
P G B 2 cm A 1 cm T 3.5 cm 2 cm 3 cm - 1 cm *- E F
