(17 pts) 9) Draw the head-flow rate graph of a pump configuration given below by using the data given at the table. Ther

Post by answerhappygod »

17 Pts 9 Draw The Head Flow Rate Graph Of A Pump Configuration Given Below By Using The Data Given At The Table Ther 1
17 Pts 9 Draw The Head Flow Rate Graph Of A Pump Configuration Given Below By Using The Data Given At The Table Ther 1 (22.26 KiB) Viewed 32 times

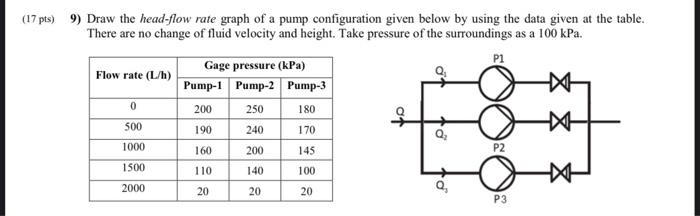

(17 pts) 9) Draw the head-flow rate graph of a pump configuration given below by using the data given at the table. There are no change of fluid velocity and height. Take pressure of the surroundings as a 100 kPa. P1 Gage pressure (kPa) Flow rate (L/h) Pump-1 Pump-2 Pump-3 0 200 250 180 500 190 240 170 1000 160 200 145 1500 110 140 100 2000 20 20 20 +8 Q₂ to P2 P3
