The link lengths and the value of 02 and y for some inverted fourbar crank-slider linkages are defined in the table give

[answerhappygod]

The Link Lengths And The Value Of 02 And Y For Some Inverted Fourbar Crank Slider Linkages Are Defined In The Table Give 1 (80 KiB) Viewed 38 times

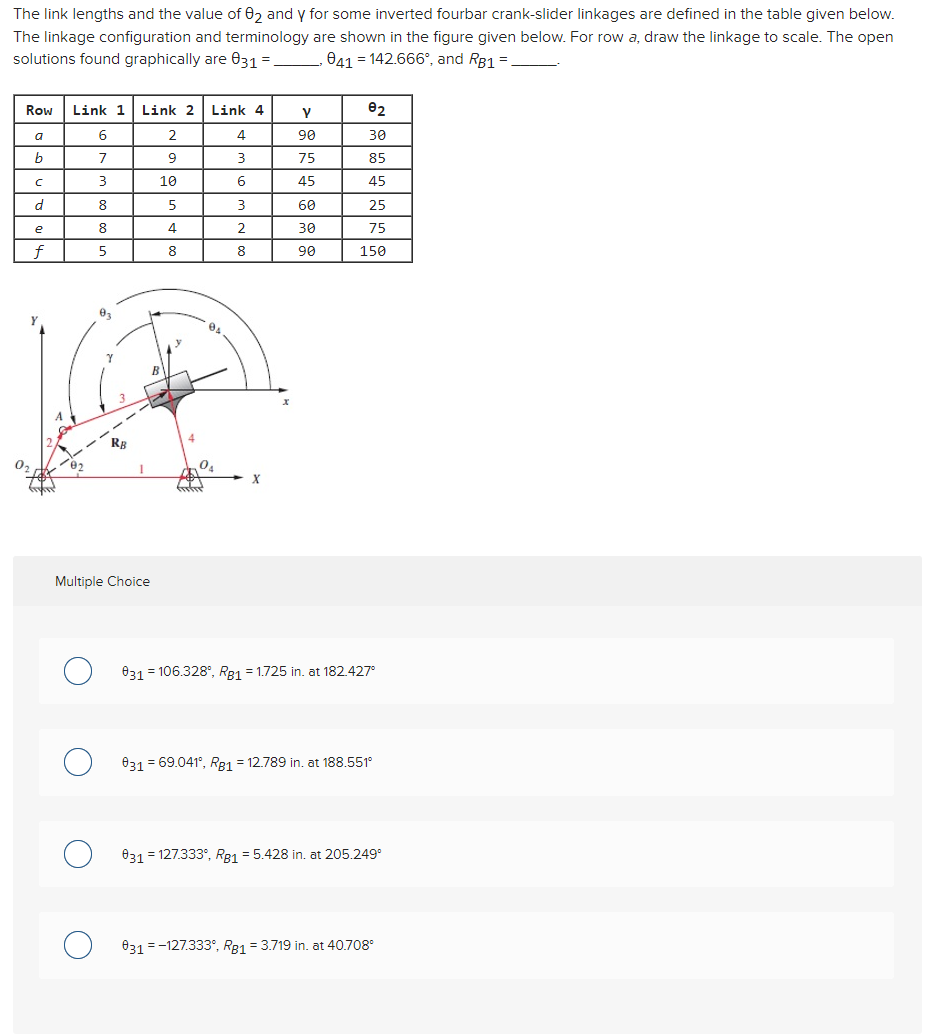

The link lengths and the value of 02 and y for some inverted fourbar crank-slider linkages are defined in the table given below. The linkage configuration and terminology are shown in the figure given below. For row a, draw the linkage to scale. The open solutions found graphically are 031 = , 041 142.666°, and RB1 = Row Link 1 Link 2 Link 4 Y 02 a 6 2 4 30 b 7 9 3 85 с 3 10 6 45 d 8 5 3 25 e 8 4 2 75 f 5 8 8 150 RB Multiple Choice ons oog 90 75 45 60 30 90 X 031 = 106.328⁰, RB1 = 1.725 in. at 182.427° 031 = 69.041°, RB1 = 12.789 in. at 188.551° 031 = 127.333°, RB1 = 5.428 in. at 205.249° 031-127.333°, RB1 = 3.719 in. at 40.708⁰
