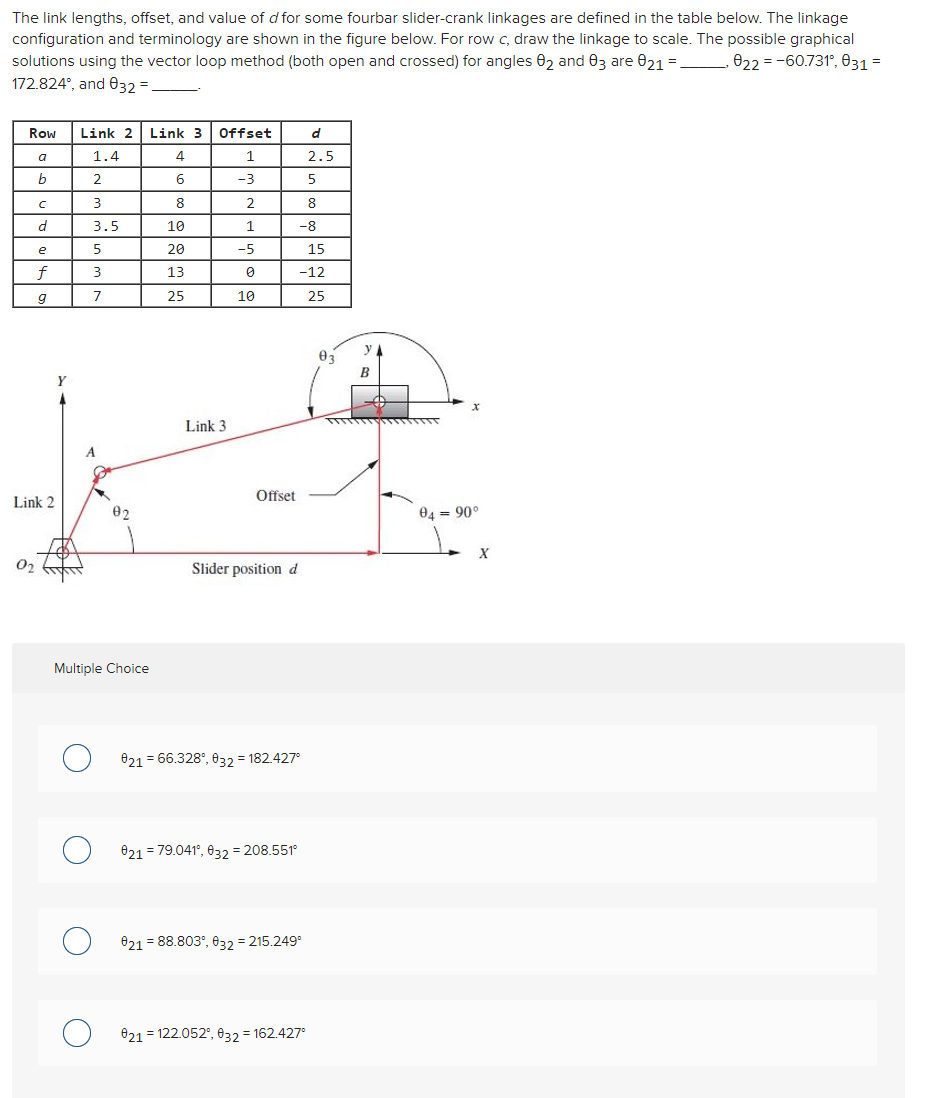

The link lengths, offset, and value of d for some fourbar slider-crank linkages are defined in the table below. The link
