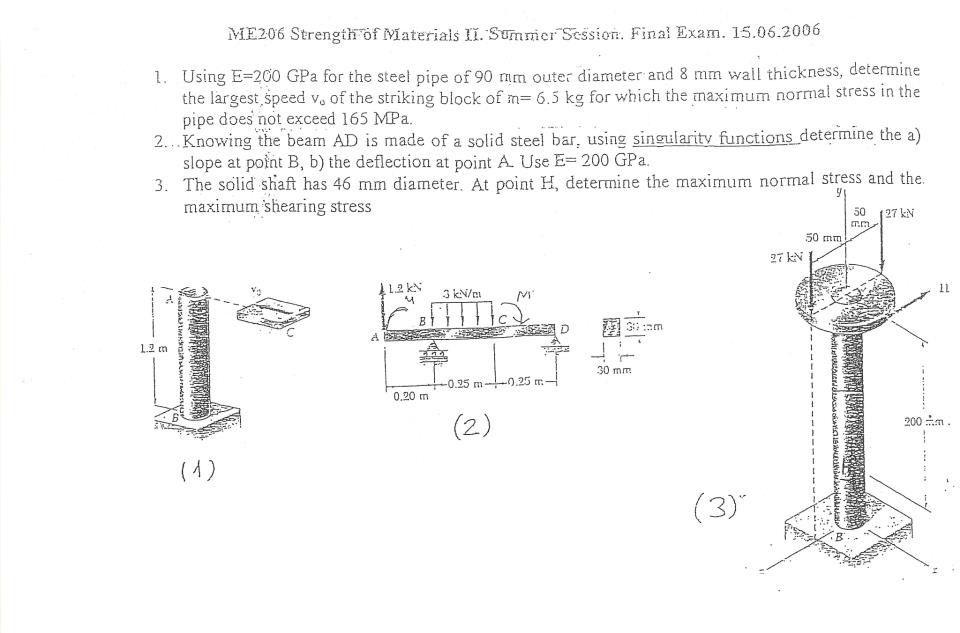

ME206 Strength of Materials II. Summer Session. Final Exam. 15.06.2006 1. Using E-200 GPa for the steel pipe of 90 mm outer diameter and 8 mm wall thickness, determine the largest speed v, of the striking block of m= 6.5 kg for which the maximum normal stress in the pipe does not exceed 165 MPa. GALK 2...Knowing the beam AD is made of a solid steel bar, using singularity functions determine the a) slope at point B, b) the deflection at point A. Use E= 200 GPa. 3. The solid shaft has 46 mm diameter. At point H, determine the maximum normal stress and the. maximum 'shearing stress 91 50 127 kN m.m 50 mm 27 KN 12 kN 4 3 kN/m M m 1.2 m (1) 0,20 m 72 1025 T 0.25 m -0.25 m (2) 30 mm (3)" 11 200m
