Cantilever Circular Shaft Is Loaded By Concentrated Couples M A M2 Soho Solito M3 M4 12 13 14 Given 1 1 61 1 11 1 (69.3 KiB) Viewed 32 times

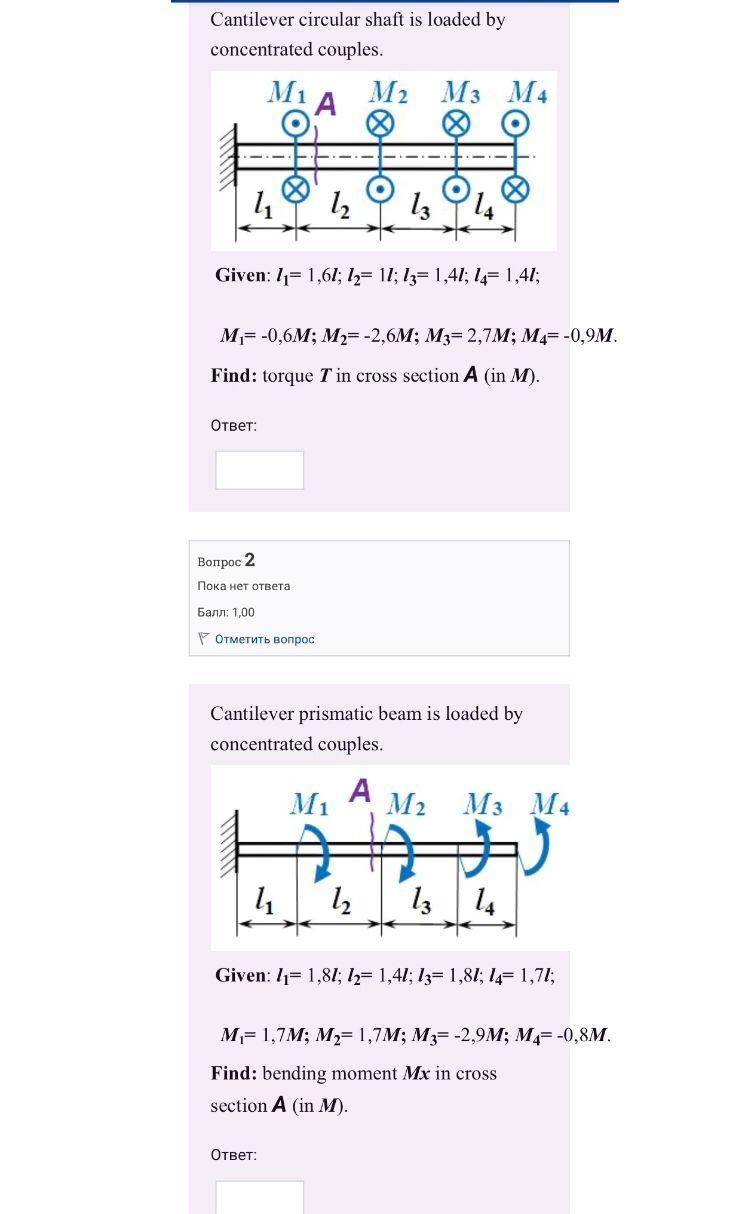

Cantilever circular shaft is loaded by concentrated couples. M₁A M2 SOHO Solito M3 M4 12 13 14 Given: 1₁= 1,61; 1₂= 11; 13= 1,4l;, 14=1,41; M₁= -0,6M; M₂= -2,6M; M3= 2,7M; M4= -0,9M. Find: torque T'in cross section A (in M). Ответ: Вопрос 2 Пока нет ответа Балл: 1,00 р Отметить вопрос Cantilever prismatic beam is loaded by concentrated couples. A M1 M2 M3 M4 4₁ 12 13 14 Given: 1₁= 1,81; 12= 1,4l; 13= 1,8l; 14=1,71; M₁= 1,7M; M₂= 1,7M; M3= -2,9M; M4= -0,8M. Find: bending moment Mx in cross section A (in M). Ответ:
Cantilever prismatic beam is loaded by concentrated loads. M F1 F2 F3 A 4₁ 12 13 14 Given: 1₁ 1,11; l2= 1,7l; l3= 1,91; 14= 21; F₁ -0,7P; F2= 0P; F3= 1,4P; M= 0,7PL. Find: bending moment Mx in cross section A (in PL). Ответ:
