(4) (20 marks) A beam has a rectangular cross section as shown below. The loading condition on the beam is such that it

Post by answerhappygod »

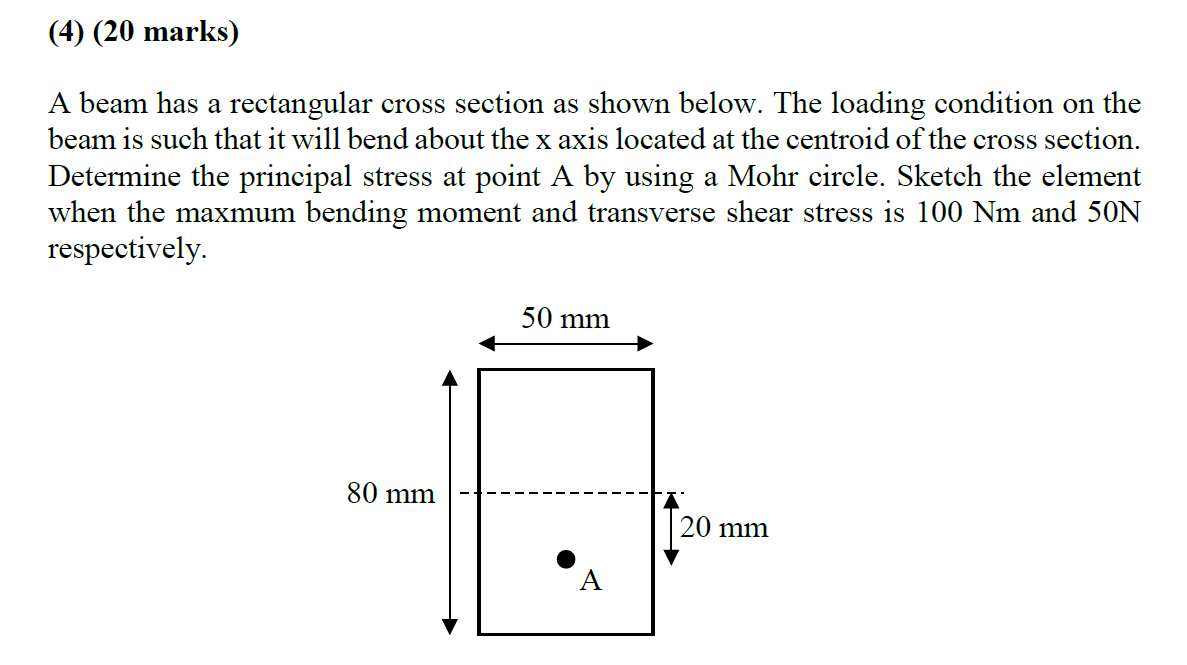

4 20 Marks A Beam Has A Rectangular Cross Section As Shown Below The Loading Condition On The Beam Is Such That It 1
4 20 Marks A Beam Has A Rectangular Cross Section As Shown Below The Loading Condition On The Beam Is Such That It 1 (44.7 KiB) Viewed 29 times
(4) (20 marks) A beam has a rectangular cross section as shown below. The loading condition on the beam is such that it will bend about the x axis located at the centroid of the cross section. Determine the principal stress at point A by using a Mohr circle. Sketch the element when the maxmum bending moment and transverse shear stress is 100 Nm and 50N respectively. 50 mm -0- 80 mm 20 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
