Question 2 [25 marks] A single horizontal force P of magnitude 650 N is applied to end D of lever ABD. Knowing that port

Post by answerhappygod »

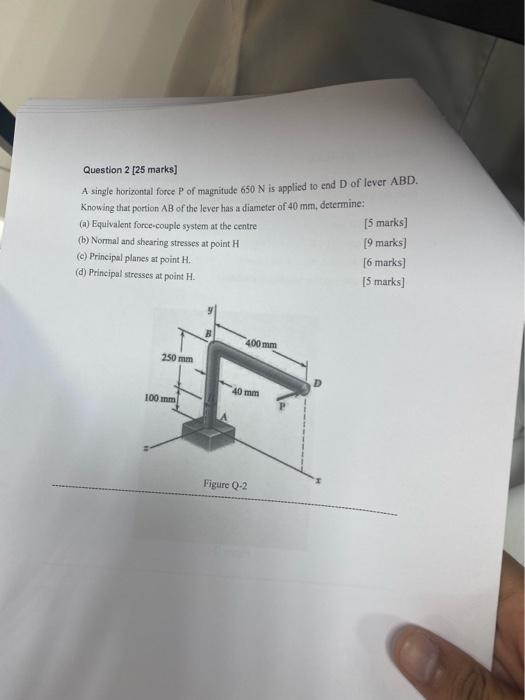

Question 2 25 Marks A Single Horizontal Force P Of Magnitude 650 N Is Applied To End D Of Lever Abd Knowing That Port 1
Question 2 25 Marks A Single Horizontal Force P Of Magnitude 650 N Is Applied To End D Of Lever Abd Knowing That Port 1 (26.64 KiB) Viewed 29 times
Question 2 [25 marks] A single horizontal force P of magnitude 650 N is applied to end D of lever ABD. Knowing that portion AB of the lever has a diameter of 40 mm, determine: [5 marks] (a) Equivalent force-couple system at the centre (b) Normal and shearing stresses at point H [9 marks] (e) Principal planes at point H. (d) Principal stresses at point H. [6 marks] [5 marks] 250 mm 100 mm 400 mm L 40 mm Figure Q-2
