A simple screw jack has a square threaded screw whose mean diameter is 6 cm and pitch 12.50 mm as shown in Figure. The w

Post by answerhappygod »

A Simple Screw Jack Has A Square Threaded Screw Whose Mean Diameter Is 6 Cm And Pitch 12 50 Mm As Shown In Figure The W 1
A Simple Screw Jack Has A Square Threaded Screw Whose Mean Diameter Is 6 Cm And Pitch 12 50 Mm As Shown In Figure The W 1 (99.3 KiB) Viewed 28 times

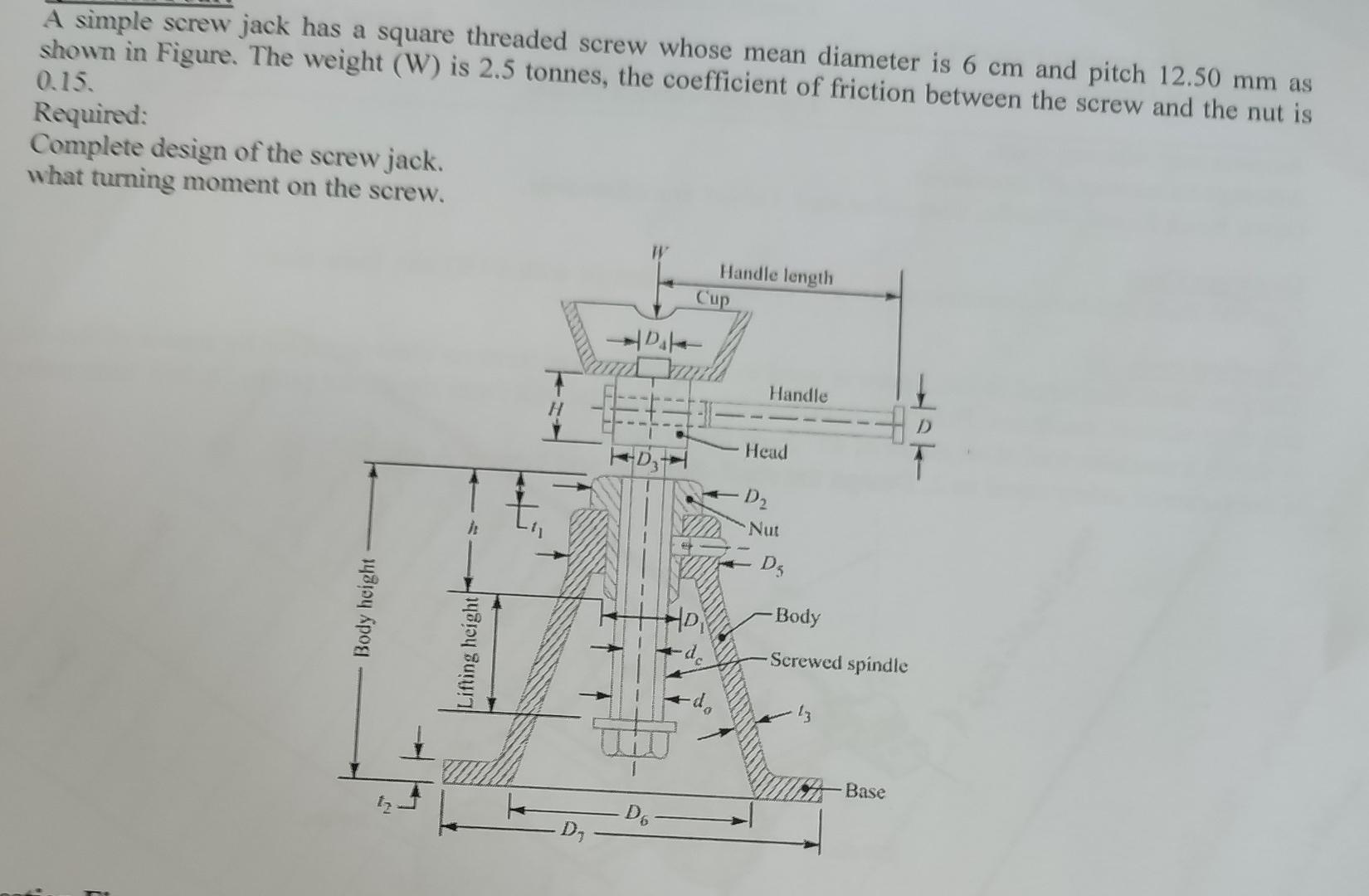

A simple screw jack has a square threaded screw whose mean diameter is 6 cm and pitch 12.50 mm as shown in Figure. The weight (W) is 2.5 tonnes, the coefficient of friction between the screw and the nut is 0.15. Required: Complete design of the screw jack. what turning moment on the screw. Handle length Cup Handle Body height Lifting height D₂ → Dat D6 Head - D₂ Nut D3 Body - Screwed spindle Base
