Answer the following questions based on the C–V curve for an MOS
capacitor shown in Figure1.The area of the capacitor is 10^4um . At
300 K. ni = 1.5*10^10cm
(d) What is the value of the capacitance at position C on the
C–V curve shownin Fig.1?
(e) Sketch the energy band diagram of the MOS structure at
positions A, B, C, D, and Eon the C–V curve.
(f) At location B on the C–V curve, What is the band bending ?
Substituting the numerical values and solving the quadratic
equation.

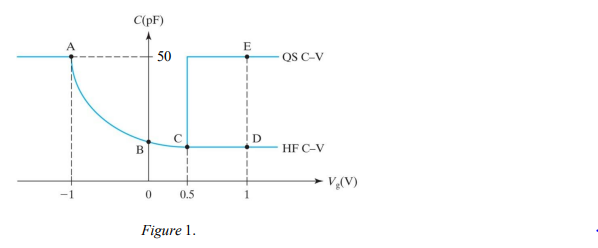

Answer The Following Questions Based On The C V Curve For An Mos Capacitor Shown In Figure1 The Area Of The Capacitor Is 1 (20.45 KiB) Viewed 26 times
C(pF) B 50 0 0.5 Figure 1. E D QS C-V HF C-V -V₂(V)
