HW: Helmholtz Coil • Two coils (each coil has only one ring coil with a radius of a = 1 m carrying a current I = 1 A) ar

[answerhappygod]

Hw Helmholtz Coil Two Coils Each Coil Has Only One Ring Coil With A Radius Of A 1 M Carrying A Current I 1 A Ar 1 (22.29 KiB) Viewed 26 times

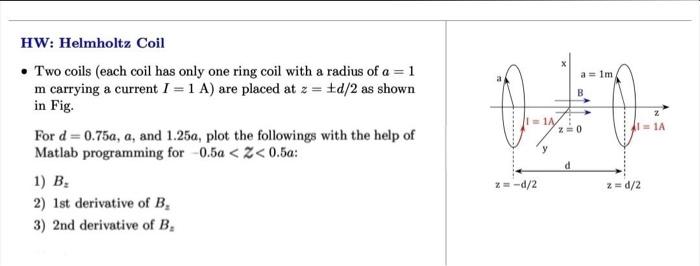

HW: Helmholtz Coil • Two coils (each coil has only one ring coil with a radius of a = 1 m carrying a current I = 1 A) are placed at z = ±d/2 as shown in Fig. For d = 0.75a, a, and 1.250, plot the followings with the help of Matlab programming for 0.5a <Z<0.5a: 1) B₂ 2) 1st derivative of B₂ 3) 2nd derivative of B. 1=1A y z = -d/2 a=1m B z=0 d Z 1=1A z =d/2
