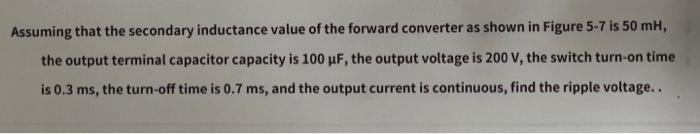

Assuming that the secondary inductance value of the forward converter as shown in Figure 5-7 is 50 mH, the output terminal capacitor capacity is 100 µF, the output voltage is 200 V, the switch turn-on time is 0.3 ms, the turn-off time is 0.7 ms, and the output current is continuous, find the ripple voltage..

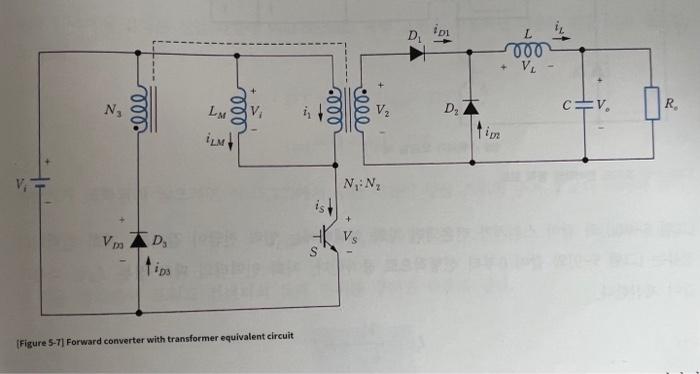

N₁ ell Vm تعفف LM İLM V₁ D₁ tips (Figure 5-7] Forward converter with transformer equivalent circuit 000 cele is V₂ NN, Vs D₁ 101 D₂ 1102 LLL 000 V₁ C V₂ R
