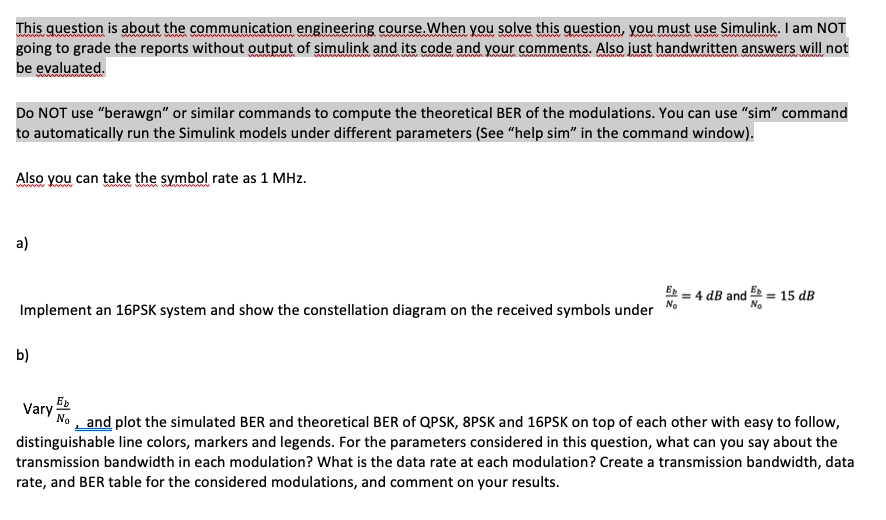

This Question Is About The Communication Engineering Course When You Solve This Question You Must Use Simulink I Am N 1 (66.82 KiB) Viewed 23 times

This question is about the communication engineering course. When you solve this question, you must use Simulink. I am NOT going to grade the reports without output of simulink and its code and your comments. Also just handwritten answers will not be evaluated. Do NOT use "berawgn" or similar commands to compute the theoretical BER of the modulations. You can use "sim" command to automatically run the Simulink models under different parameters (See "help sim" in the command window). Also you can take the symbol rate as 1 MHz. a) Eb= 4 dB and = 15 dB No No Implement an 16PSK system and show the constellation diagram on the received symbols under b) Eb Vary No, and plot the simulated BER and theoretical BER of QPSK, 8PSK and 16PSK on top of each other with easy to follow, distinguishable line colors, markers and legends. For the parameters considered in this question, what can you say about the transmission bandwidth in each modulation? What is the data rate at each modulation? Create a transmission bandwidth, data rate, and BER table for the considered modulations, and comment on your results.
