Question 1: (20 marks) In the circuit shown below Load 1: absorbs 2.4 kw, and 1.8 kVAR (L) Load 2: absorbs 1.3 kw, and 2

Post by answerhappygod »

Question 1 20 Marks In The Circuit Shown Below Load 1 Absorbs 2 4 Kw And 1 8 Kvar L Load 2 Absorbs 1 3 Kw And 2 1
Question 1 20 Marks In The Circuit Shown Below Load 1 Absorbs 2 4 Kw And 1 8 Kvar L Load 2 Absorbs 1 3 Kw And 2 1 (25.45 KiB) Viewed 27 times

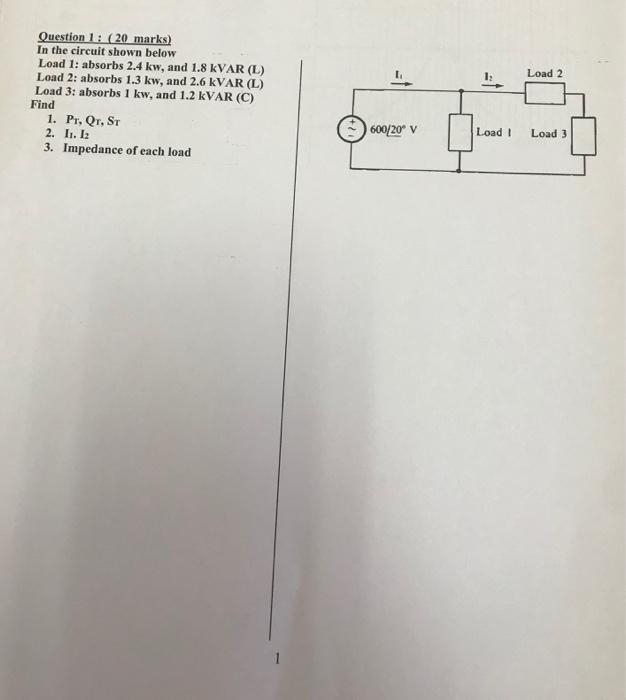

Question 1: (20 marks) In the circuit shown below Load 1: absorbs 2.4 kw, and 1.8 kVAR (L) Load 2: absorbs 1.3 kw, and 2.6 kVAR (L) Load 3: absorbs 1 kw, and 1.2 kVAR (C) Find 1. Pr, QT, ST 2. 11. 12 3. Impedance of each load 600/20⁰ V 1 Load I Load 2 Load 3
