Effects of an applied DC voltage VG on energy-bands through an MOS capacitor with a p-type substrate are shown in Fig. F

Post by answerhappygod »

Effects Of An Applied Dc Voltage Vg On Energy Bands Through An Mos Capacitor With A P Type Substrate Are Shown In Fig F 1
Effects Of An Applied Dc Voltage Vg On Energy Bands Through An Mos Capacitor With A P Type Substrate Are Shown In Fig F 1 (147.32 KiB) Viewed 24 times

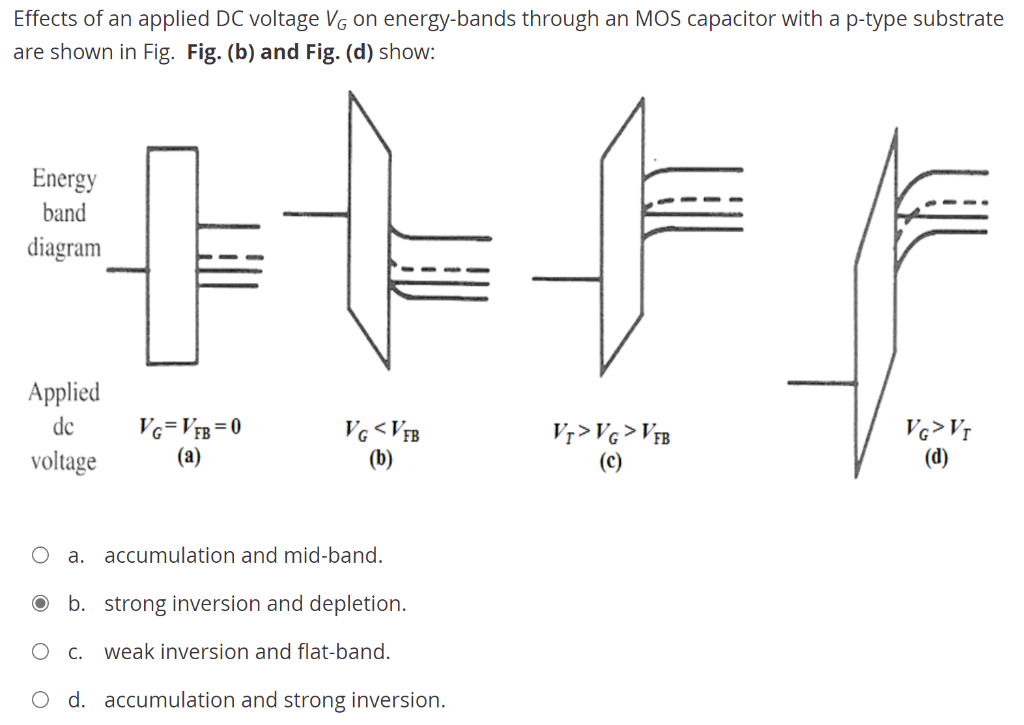

Effects of an applied DC voltage VG on energy-bands through an MOS capacitor with a p-type substrate are shown in Fig. Fig. (b) and Fig. (d) show: Energy band ㅑ diagram Applied dc VG<VFB VG=VfB = 0 (a) Vr> VG > VFB VG>Vi voltage (b) (d) O a. accumulation and mid-band. ● b. strong inversion and depletion. c. weak inversion and flat-band. d. O accumulation and strong inversion.
