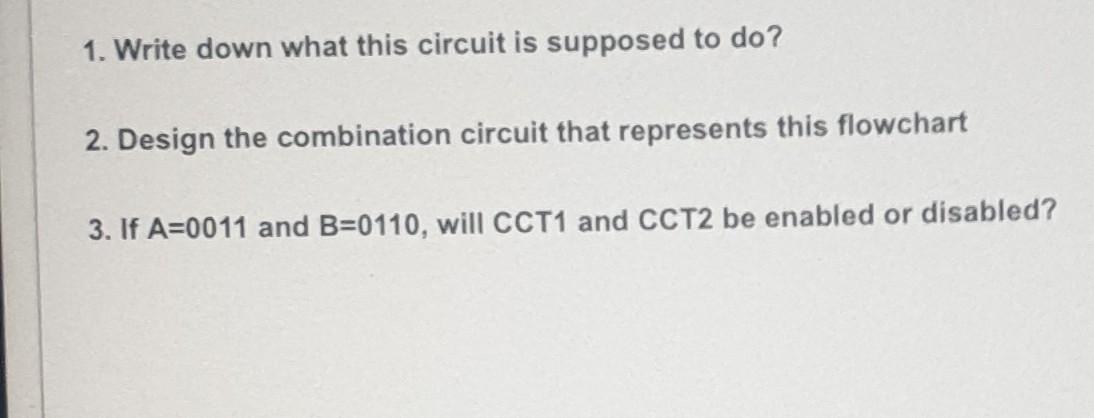

1. Write down what this circuit is supposed to do? 2. Design the combination circuit that represents this flowchart 3. If A=0011 and B=0110, will CCT1 and CCT2 be enabled or disabled?
1. Write down what this circuit is supposed to do? 2. Design the combination circuit that represents this flowchart 3. If A=0011 and B=0110, will CCT1 and CCT2 be enabled or disabled?

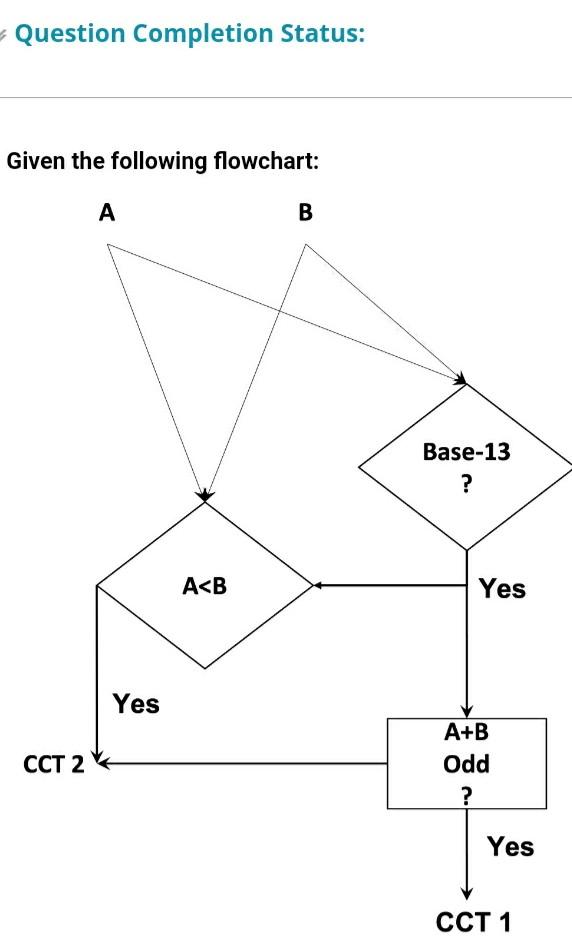

Question Completion Status: Given the following flowchart: A B CCT 2 Yes A<B Base-13 ? Yes A+B Odd ? Yes CCT 1
