5. In Fig. 1. If VBE(SAT) = 0.75 V, VBE(FA) = 0.65 V, VD(ON) = 0.65 V, the value of VIL is Va A. 2.05 V B. 1.4 C. 1.3 V

[answerhappygod]

5 In Fig 1 If Vbe Sat 0 75 V Vbe Fa 0 65 V Vd On 0 65 V The Value Of Vil Is Va A 2 05 V B 1 4 C 1 3 V 1 (41.77 KiB) Viewed 24 times

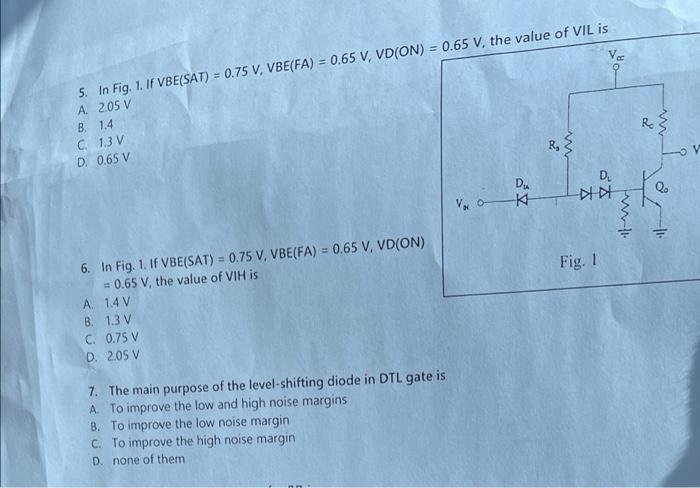

5. In Fig. 1. If VBE(SAT) = 0.75 V, VBE(FA) = 0.65 V, VD(ON) = 0.65 V, the value of VIL is Va A. 2.05 V B. 1.4 C. 1.3 V D. 0.65 V 6. In Fig. 1. If VBE(SAT) = 0.75 V, VBE(FA) = 0.65 V, VD(ON) = 0.65 V, the value of VIH is A. 1.4 V B. 1.3 V C. 0.75 V D. 2.05 V 7. The main purpose of the level-shifting diode in DTL gate is A. To improve the low and high noise margins B. To improve the low noise margin C. To improve the high noise margin D. none of them 2x R₂ www. D₂ DIA Fig. 1 www. 2 ww V
