- Problem 1 The Switch In The Circuit Has Been Closed For A Long Time Prior To Being Thrown Open At T 0 A Determine T 1 (54.04 KiB) Viewed 24 times
time prior to being thrown open at t=0.
Problem 2: For the circuit below, ππ (π‘) = 5 cos 10π‘ π΄.

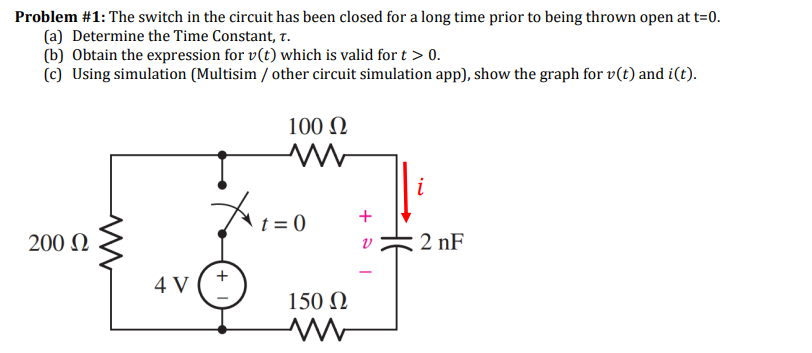

Problem #1: The switch in the circuit has been closed for a long time prior to being thrown open at t=0. (a) Determine the Time Constant, T. (b) Obtain the expression for v(t) which is valid for t > 0. (c) Using simulation (Multisim / other circuit simulation app), show the graph for v(t) and i(t). 100 Ξ© M i 200 Ξ© 2nF 4 V + t=0 150 Ξ© www
