a. Identify the transfer function of the system. b. Find the system error constants for the unity feedback system of Fig

Post by answerhappygod »

A Identify The Transfer Function Of The System B Find The System Error Constants For The Unity Feedback System Of Fig 1
A Identify The Transfer Function Of The System B Find The System Error Constants For The Unity Feedback System Of Fig 1 (65.87 KiB) Viewed 24 times

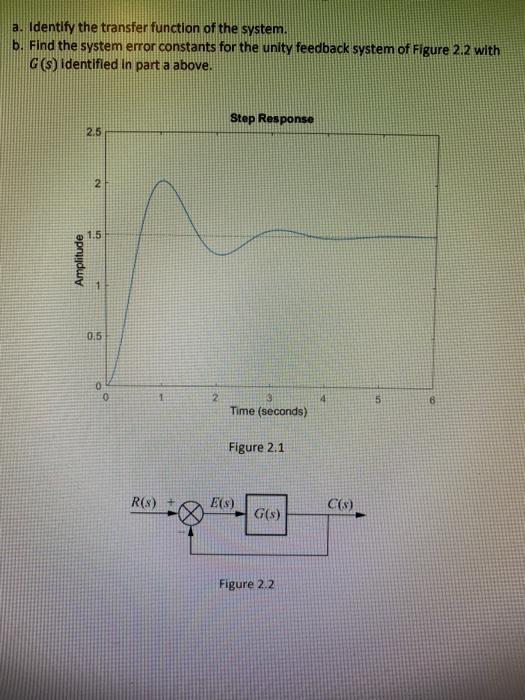

a. Identify the transfer function of the system. b. Find the system error constants for the unity feedback system of Figure 2.2 with G(s) identified in part a above. Step Response 2.5 2 Amplitude 1.5 1 0.5 0 0 R(s) + 2 Time (seconds) Figure 2.1 G(s) E(s) Figure 2.2 4 C(s) 5 6
