- Consider The Amplifier Circuit Shown In The Figure 0 5 Ma 300 Kn 19 Bac A Identify The Amplifier Configuration 7 Conco 1 (14.84 KiB) Viewed 30 times
- Consider The Amplifier Circuit Shown In The Figure 0 5 Ma 300 Kn 19 Bac A Identify The Amplifier Configuration 7 Conco 2 (4.26 KiB) Viewed 30 times

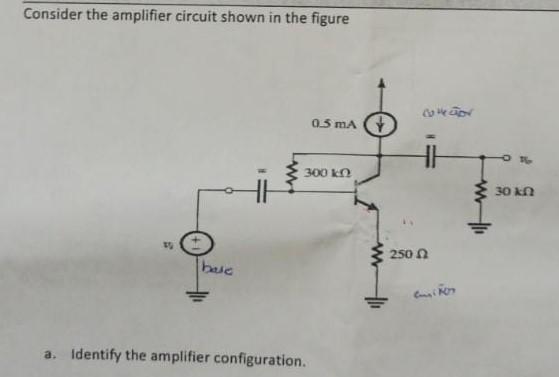

Consider the amplifier circuit shown in the figure 0.5 mA 300 kn 19 bac a. Identify the amplifier configuration. 7 concor HH 250 Ω F www 5 # 30 kn
b. Draw the small signal T model and find the value of gm. Assume a as 1
