For the circuit of Figure 1.1: v¡(1) 50ΚΩ ww + V (1) 200 ΚΩ 1 μF I V.(1) Figure 1.1 a. Derive the transfer function rela

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the circuit of Figure 1.1: v¡(1) 50ΚΩ ww + V (1) 200 ΚΩ 1 μF I V.(1) Figure 1.1 a. Derive the transfer function rela

Post by answerhappygod »

1
1 (15.55 KiB) Viewed 13 times
Please show working out

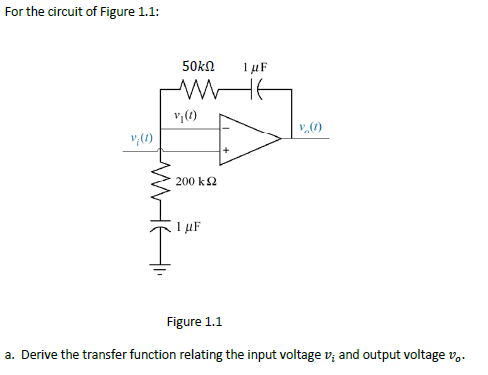

For the circuit of Figure 1.1: v¡(1) 50ΚΩ ww + V (1) 200 ΚΩ 1 μF I V.(1) Figure 1.1 a. Derive the transfer function relating the input voltage v; and output voltage v. 1 μF
